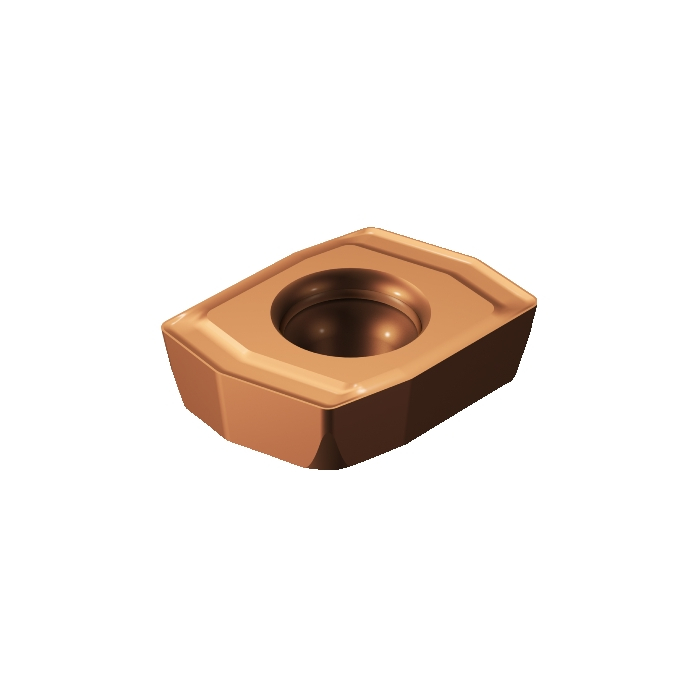

Sandvik Coromant 880-01 02 03H-C-LM 1044 CoroDrill® 880 insert for drilling
R 243,80
inc. vat
In stock
SKU
5765558
CoroDrill® 880 insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 insert for drilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 0.9g |
| RE - Corner Radius | 0.3mm |
| Insert Thickness | 2.2mm |
| D1 - Fixing Hole Diameter | 2.2mm |
| BN - Face Land Width | 0.035mm |
| GB - Face Land Angle | 12deg |
| GAN - Insert Rake Angle | 15deg |
| W1 - Insert Width | 4.8mm |
| ORDCODE | 880-01 02 03H-C-LM 1044 |
| CHANGEDATE | 2022-04-06 03:57:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 01C |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DE0102C_1 |
| Grade | 1044 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | LM |
| INSUC - Insert Usage Code | C |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | False |
