R 8 590,50
inc. vat
In stock
SKU
5765003

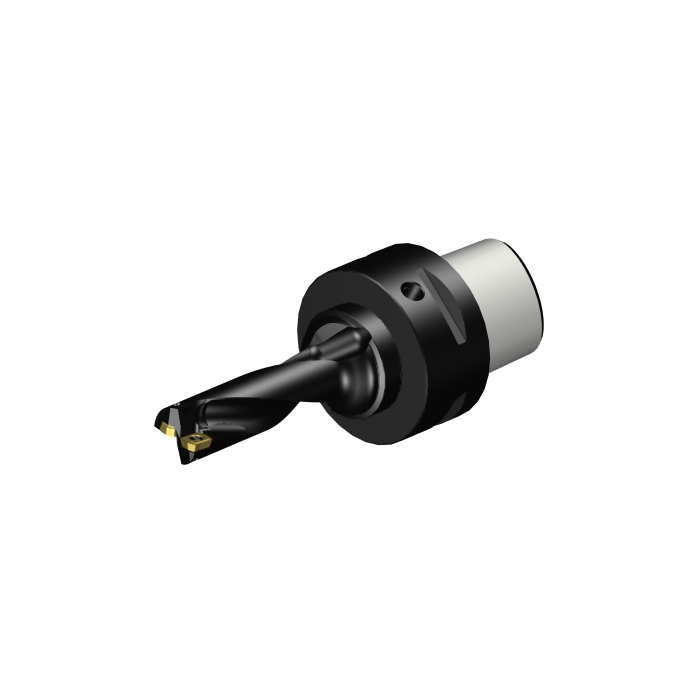

CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DFC - Functional Diameter | 28mm |
DCON - Connection Diameter | 40mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 76.6152mm |
BD - Body Diameter | 13.5mm |
LB - Body Length | 44mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 0.6Nm |
RPMX - Rotational Speed Maximum | 330001/min |
WT - Weight Of Item | 0.296kg |
OAL - Overall Length | 101mm |
OHX - Maximum Overhang | 76.6152mm |
KAPR - Tool Cutting Edge Angle | 79deg |
GAMO - Orthogonal Rake Angle | 5deg |
LAMS - Inclination Angle | 0deg |
Insert Thickness | 2.2mm |
LU - Usable Length | 40.8848mm |
ADJLN - Minimum Adjustment Limit | 0mm |
ADJLX - Maximum Adjustment Limit | 0.25mm |
W1 - Insert Width | 4.8mm |
DC - Cutting Diameter | 13.5mm |
FHA - Flute Helix Angle | 22deg |
ULDR - Usable Length Diameter Ratio | 3.028503703704 |
TCHAL - Achievable Hole Tolerance Lower | 0mm |
TCHAU - Achievable Hole Tolerance Upper | 0.25mm |
PL - Point Length | 0.3848mm |
LCF - Chip Flute Length | 51.7mm |
SIG - Point Angle | 158deg |
ORDCODE | 880-D1350C4-03 |
ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0400_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-02-10 15:28:00.000 |
STDNO - Standard Number | ISO26623-1 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DE0102P_1 |
Hand | R |
MIID - Master Insert Identification | 880-0102W04-P-GR |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 01C |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
