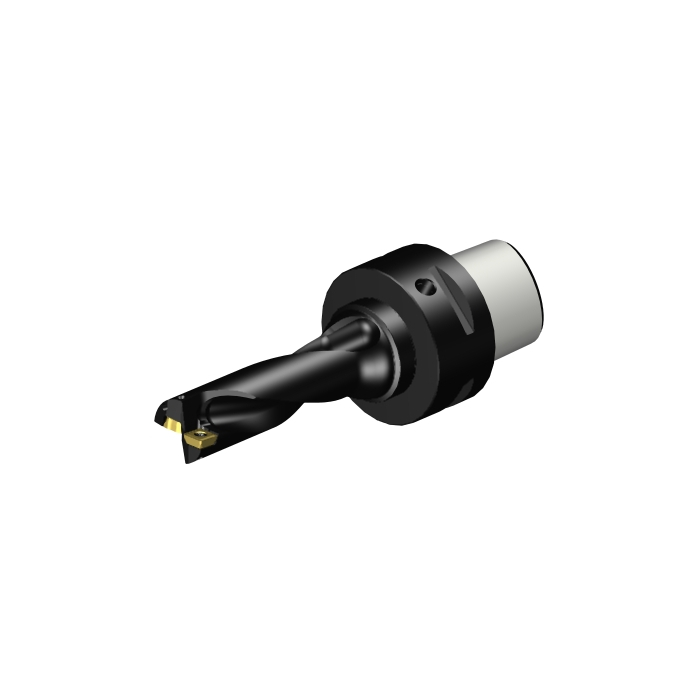

Sandvik Coromant 880-D1650C4-03 CoroDrill® 880 indexable insert drill

R 8 590,50 inc. vat
In stock
SKU
5765205
CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
More Information
CP - Coolant Pressure 1000000Pa
DFC - Functional Diameter 28mm
DCON - Connection Diameter 40mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 87.6363mm
BD - Body Diameter 16.5mm
LB - Body Length 53mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 0.9Nm
RPMX - Rotational Speed Maximum 300001/min
WT - Weight Of Item 0.314kg
OAL - Overall Length 112mm
OHX - Maximum Overhang 87.6363mm
KAPR - Tool Cutting Edge Angle 88deg
GAMO - Orthogonal Rake Angle 5deg
LAMS - Inclination Angle 0deg
IC - Inscribed Circle Diameter 6mm
Insert Thickness 2.6mm
LU - Usable Length 49.8637mm
ADJLN - Minimum Adjustment Limit 0mm
ADJLX - Maximum Adjustment Limit 0.6mm
DC - Cutting Diameter 16.5mm
FHA - Flute Helix Angle 22deg
ULDR - Usable Length Diameter Ratio 3.022042424242
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.25mm
PL - Point Length 0.3637mm
LCF - Chip Flute Length 62.5mm
SIG - Point Angle 176deg
ORDCODE 880-D1650C4-03
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0400_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-13 15:30:00.000
STDNO - Standard Number ISO26623-1
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DE0303P_1
Hand R
MIID - Master Insert Identification 880-030305H-C-GM
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 03P
CICT - Cutting Item Count 1
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
