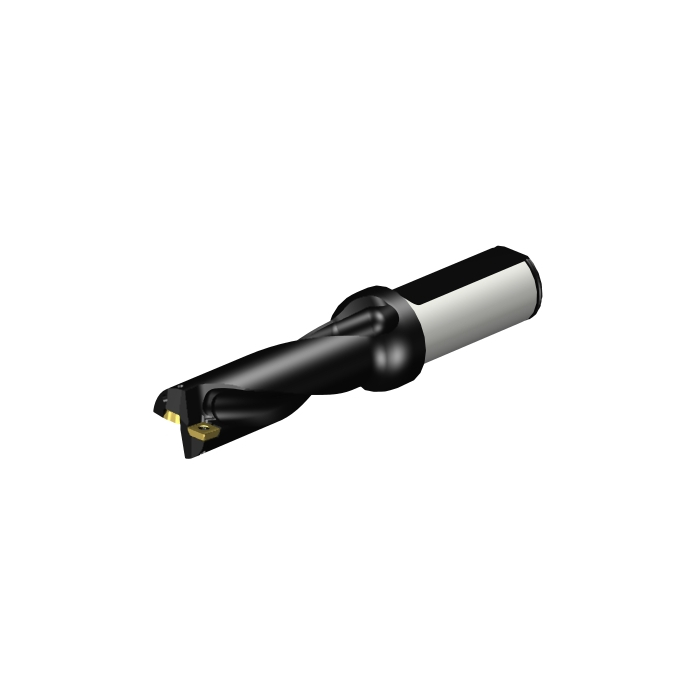

Sandvik Coromant 880-D2300L25-03 CoroDrill® 880 indexable insert drill

R 8 300,70 inc. vat
In stock
SKU
5765587
CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 25mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 90.5456mm
BD - Body Diameter 25mm
LB - Body Length 72mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 0.9Nm
RPMX - Rotational Speed Maximum 215001/min
WT - Weight Of Item 378g
OAL - Overall Length 147mm
OHX - Maximum Overhang 90.5456mm
LSC - Clamping Length 56mm
KAPR - Tool Cutting Edge Angle 88deg
GAMO - Orthogonal Rake Angle 5deg
LAMS - Inclination Angle 0deg
IC - Inscribed Circle Diameter 6.8mm
Insert Thickness 2.8mm
H - Shank Height 23mm
LU - Usable Length 69.4544mm
ADJLN - Minimum Adjustment Limit 0mm
ADJLX - Maximum Adjustment Limit 0.5mm
DC - Cutting Diameter 23mm
FHA - Flute Helix Angle 22deg
ULDR - Usable Length Diameter Ratio 3.019756521739
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.25mm
PL - Point Length 0.4544mm
LCF - Chip Flute Length 85.4mm
SIG - Point Angle 176deg
ORDCODE 880-D2300L25-03
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_G2500_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-04-19 14:02:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DE0403P_1
Hand R
MIID - Master Insert Identification 880-0403W05H-P-GM
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 04P
TCDCON - Connection Diameter Tolerance h6
CICT - Cutting Item Count 1
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
