Sandvik Coromant 880-D2700C5-04 CoroDrill® 880 indexable insert drill

R 12 623,55 inc. vat
Out of stock
SKU
5765520

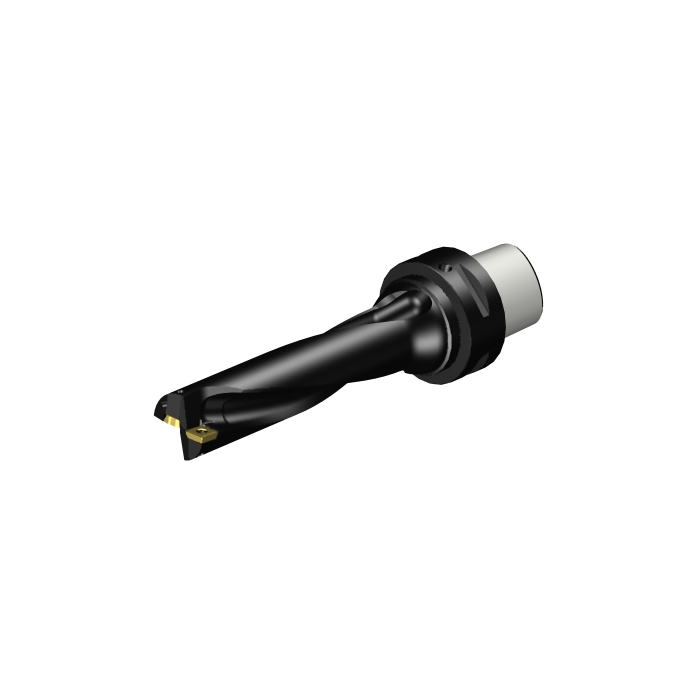

CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
More Information
CP - Coolant Pressure 1000000Pa
DFC - Functional Diameter 35mm
DCON - Connection Diameter 50mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 151.5043mm
BD - Body Diameter 27mm
LB - Body Length 111mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 1.4Nm
RPMX - Rotational Speed Maximum 155001/min
WT - Weight Of Item 0.778kg
OAL - Overall Length 182mm
OHX - Maximum Overhang 151.5043mm
KAPR - Tool Cutting Edge Angle 88deg
GAMO - Orthogonal Rake Angle 5deg
LAMS - Inclination Angle 0deg
IC - Inscribed Circle Diameter 8.4mm
Insert Thickness 3mm
LU - Usable Length 108.4957mm
ADJLN - Minimum Adjustment Limit 0mm
ADJLX - Maximum Adjustment Limit 0.7mm
DC - Cutting Diameter 27mm
FHA - Flute Helix Angle 17.5deg
ULDR - Usable Length Diameter Ratio 4.018359259259
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.4mm
PL - Point Length 0.4957mm
LCF - Chip Flute Length 126.8mm
SIG - Point Angle 176deg
ORDCODE 880-D2700C5-04
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0500_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-04-19 13:56:00.000
STDNO - Standard Number ISO26623-1
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DE0503P_1
Hand R
MIID - Master Insert Identification 880-0503W05H-P-GM
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 05P
CICT - Cutting Item Count 1
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
