R 9 067,75
inc. vat
In stock
SKU
5765510
CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days

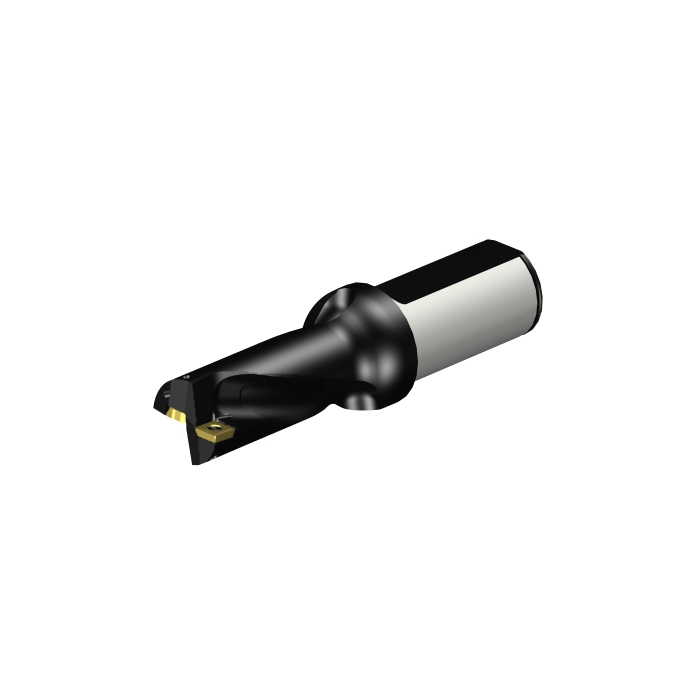

CoroDrill® 880 indexable insert drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 32mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 81.4607mm |
BD - Body Diameter | 32mm |
LB - Body Length | 60mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 1.4Nm |
RPMX - Rotational Speed Maximum | 160001/min |
WT - Weight Of Item | 0.627kg |
OAL - Overall Length | 142mm |
OHX - Maximum Overhang | 81.4607mm |
LSC - Clamping Length | 60mm |
KAPR - Tool Cutting Edge Angle | 88deg |
GAMO - Orthogonal Rake Angle | 5deg |
LAMS - Inclination Angle | 0deg |
IC - Inscribed Circle Diameter | 8.4mm |
Insert Thickness | 3mm |
H - Shank Height | 30mm |
LU - Usable Length | 56.5393mm |
ADJLN - Minimum Adjustment Limit | 0mm |
ADJLX - Maximum Adjustment Limit | 0.6mm |
DC - Cutting Diameter | 28mm |
FHA - Flute Helix Angle | 22deg |
ULDR - Usable Length Diameter Ratio | 2.019260714286 |
TCHAL - Achievable Hole Tolerance Lower | 0mm |
TCHAU - Achievable Hole Tolerance Upper | 0.25mm |
PL - Point Length | 0.5393mm |
LCF - Chip Flute Length | 76.4mm |
SIG - Point Angle | 176deg |
ORDCODE | 880-D2800L32-02 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLISO_G3200_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-19 13:54:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DE0503P_1 |
Hand | R |
MIID - Master Insert Identification | 880-0503W05H-P-GM |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 05P |
TCDCON - Connection Diameter Tolerance | h6 |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
