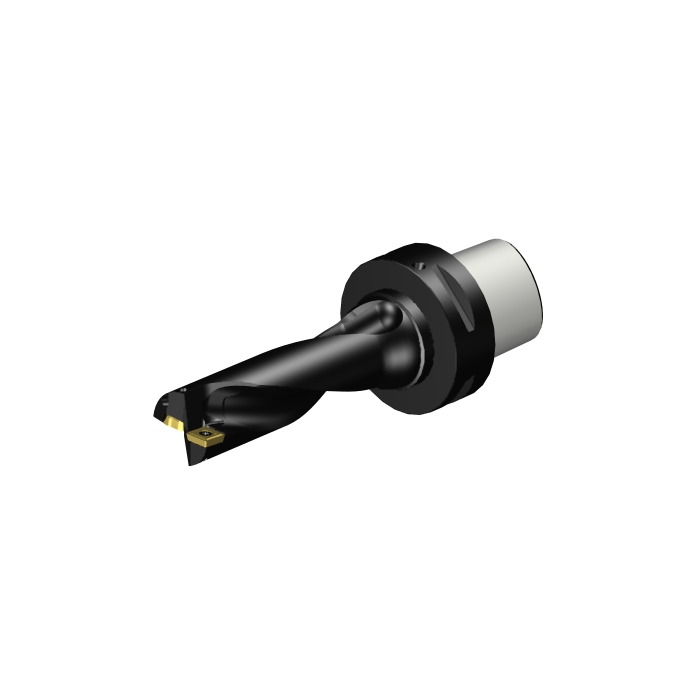

Sandvik Coromant 880-D3000C6-03 CoroDrill® 880 indexable insert drill

Name: Sandvik Coromant 880-D3000C6-03 CoroDrill® 880 indexable insert drill
SKU: 5765649
Price: 10976.75 ZAR
Availability: OutOfStock

R 10 976,75 inc. vat

Out of stock

SKU

5765649

CoroDrill® 880 indexable insert drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 880 indexable insert drill

More Information
CP - Coolant Pressure	1000000Pa
DFC - Functional Diameter	44mm
DCON - Connection Diameter	63mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	138.4114mm
BD - Body Diameter	30mm
LB - Body Length	94mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	2Nm
RPMX - Rotational Speed Maximum	160001/min
WT - Weight Of Item	1.104kg
OAL - Overall Length	177mm
OHX - Maximum Overhang	138.4114mm
KAPR - Tool Cutting Edge Angle	88deg
GAMO - Orthogonal Rake Angle	5deg
LAMS - Inclination Angle	0deg
IC - Inscribed Circle Diameter	10.65mm
Insert Thickness	3.5mm
LU - Usable Length	90.5886mm
ADJLN - Minimum Adjustment Limit	0mm
ADJLX - Maximum Adjustment Limit	1.12mm
DC - Cutting Diameter	30mm
FHA - Flute Helix Angle	22deg
ULDR - Usable Length Diameter Ratio	3.01962
TCHAL - Achievable Hole Tolerance Lower	0mm
TCHAU - Achievable Hole Tolerance Upper	0.25mm
PL - Point Length	0.5886mm
LCF - Chip Flute Length	111.6mm
SIG - Point Angle	176deg
ORDCODE	880-D3000C6-03
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0630_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-04-19 14:07:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_DE0604P_1
Hand	R
MIID - Master Insert Identification	880-0604W06H-P-GM
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	06P
CICT - Cutting Item Count	1
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
