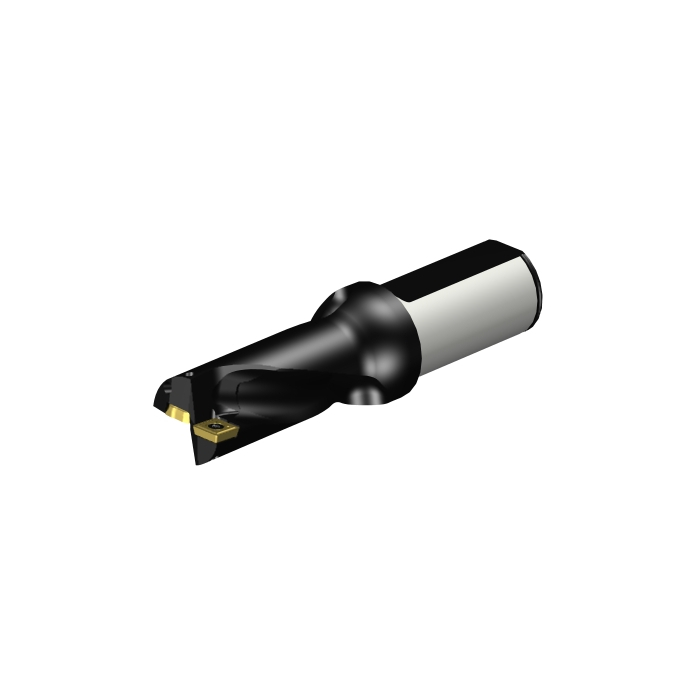

Sandvik Coromant 880-D3000L32-02 CoroDrill® 880 indexable insert drill

Name: Sandvik Coromant 880-D3000L32-02 CoroDrill® 880 indexable insert drill
SKU: 5765651
Price: 9067.75 ZAR
Availability: InStock

R 9 067,75 inc. vat

In stock

SKU

5765651

CoroDrill® 880 indexable insert drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 880 indexable insert drill

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	32mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	86.4114mm
BD - Body Diameter	32mm
LB - Body Length	64mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	2Nm
RPMX - Rotational Speed Maximum	160001/min
WT - Weight Of Item	646g
OAL - Overall Length	147mm
OHX - Maximum Overhang	86.4114mm
LSC - Clamping Length	60mm
KAPR - Tool Cutting Edge Angle	88deg
GAMO - Orthogonal Rake Angle	5deg
LAMS - Inclination Angle	0deg
IC - Inscribed Circle Diameter	10.65mm
Insert Thickness	3.5mm
H - Shank Height	30mm
LU - Usable Length	60.5886mm
ADJLN - Minimum Adjustment Limit	0mm
ADJLX - Maximum Adjustment Limit	1.12mm
DC - Cutting Diameter	30mm
FHA - Flute Helix Angle	22deg
ULDR - Usable Length Diameter Ratio	2.01962
TCHAL - Achievable Hole Tolerance Lower	0mm
TCHAU - Achievable Hole Tolerance Upper	0.25mm
PL - Point Length	0.5886mm
LCF - Chip Flute Length	81.6mm
SIG - Point Angle	176deg
ORDCODE	880-D3000L32-02
ADINTMS - Adaptive Interface Machine Direction	M_CYLISO_G3200_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-04-19 14:07:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_DE0604P_1
Hand	R
MIID - Master Insert Identification	880-0604W06H-P-GM
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	06P
TCDCON - Connection Diameter Tolerance	h6
CICT - Cutting Item Count	1
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
