Sandvik Coromant 880-D4000C5-04 CoroDrill® 880 indexable insert drill
Next
Sandvik Coromant 880-D4100L40-04 CoroDrill® 880 indexable insert drill
Previous
![Sandvik Coromant 880-D4000C5-04 CoroDrill® 880 indexable insert drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/737604c51/sandvik-coromant-880-d4000c5-04-corodrillr-880-indexable-insert-drill.jpg)
![Sandvik Coromant 880-D4100L40-04 CoroDrill® 880 indexable insert drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/737586afb/sandvik-coromant-880-d4100l40-04-corodrillr-880-indexable-insert-drill.jpg)
R 13 488,35
inc. vat
In stock
SKU
5765622
CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days

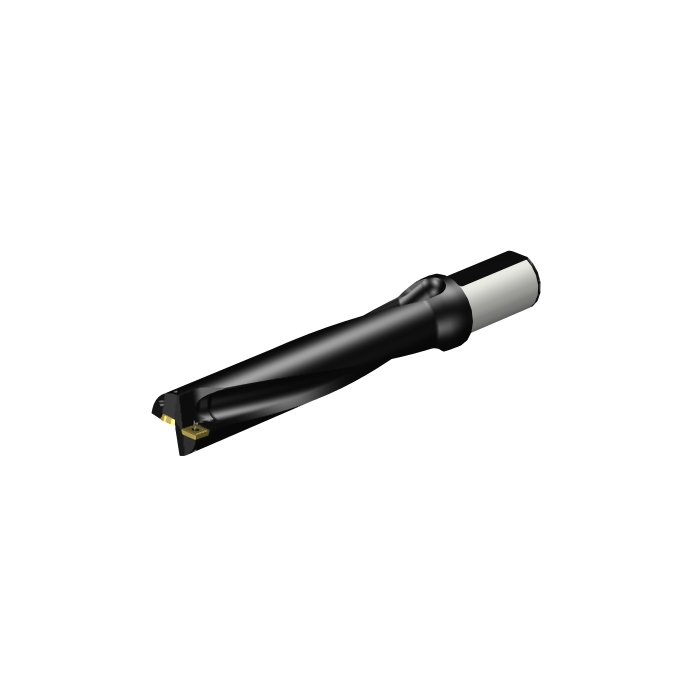

CoroDrill® 880 indexable insert drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 40mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 239.3646mm |
BD - Body Diameter | 41mm |
LB - Body Length | 210mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 2Nm |
RPMX - Rotational Speed Maximum | 75001/min |
WT - Weight Of Item | 2.04kg |
OAL - Overall Length | 310mm |
OHX - Maximum Overhang | 239.3646mm |
LSC - Clamping Length | 70mm |
KAPR - Tool Cutting Edge Angle | 88deg |
GAMO - Orthogonal Rake Angle | 5deg |
LAMS - Inclination Angle | 0deg |
IC - Inscribed Circle Diameter | 12.35mm |
Insert Thickness | 4mm |
H - Shank Height | 38mm |
LU - Usable Length | 205.6354mm |
ADJLN - Minimum Adjustment Limit | 0mm |
ADJLX - Maximum Adjustment Limit | 0.75mm |
DC - Cutting Diameter | 41mm |
FHA - Flute Helix Angle | 13deg |
ULDR - Usable Length Diameter Ratio | 5.015497560976 |
TCHAL - Achievable Hole Tolerance Lower | 0mm |
TCHAU - Achievable Hole Tolerance Upper | 0.4mm |
PL - Point Length | 0.6354mm |
LCF - Chip Flute Length | 234.2mm |
SIG - Point Angle | 176deg |
ORDCODE | 880-D4100L40-05 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLISO_G4000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-19 14:04:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DE0704P_1 |
Hand | R |
MIID - Master Insert Identification | 880-0704W06H-P-GM |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 07P |
TCDCON - Connection Diameter Tolerance | h6 |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
