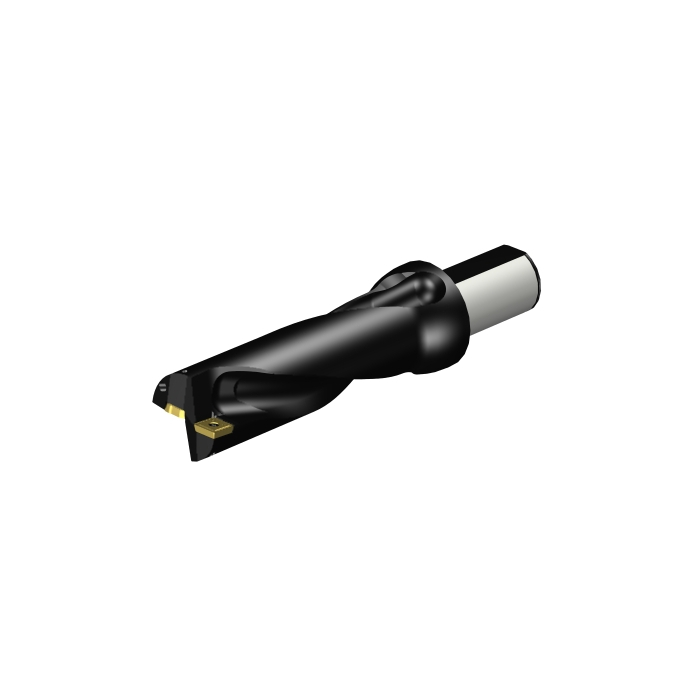

Sandvik Coromant 880-D3500L40-04 CoroDrill® 880 indexable insert drill
Next
Sandvik Coromant 880-D2800C4-04 CoroDrill® 880 indexable insert drill
Previous
![Sandvik Coromant 880-D3500L40-04 CoroDrill® 880 indexable insert drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/73657b2dc/sandvik-coromant-880-d3500l40-04-corodrillr-880-indexable-insert-drill.jpg)
![Sandvik Coromant 880-D2800C4-04 CoroDrill® 880 indexable insert drill](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/736558860/sandvik-coromant-880-d2800c4-04-corodrillr-880-indexable-insert-drill.jpg)
R 12 865,05
inc. vat
In stock
SKU
5765491
CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 40mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 189.188mm |
BD - Body Diameter | 50mm |
LB - Body Length | 155mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 150001/min |
WT - Weight Of Item | 2.272kg |
OAL - Overall Length | 260mm |
OHX - Maximum Overhang | 189.188mm |
LSC - Clamping Length | 70mm |
KAPR - Tool Cutting Edge Angle | 88deg |
GAMO - Orthogonal Rake Angle | 5deg |
LAMS - Inclination Angle | 0deg |
IC - Inscribed Circle Diameter | 14.85mm |
Insert Thickness | 4.5mm |
H - Shank Height | 38mm |
LU - Usable Length | 150.812mm |
ADJLN - Minimum Adjustment Limit | 0mm |
ADJLX - Maximum Adjustment Limit | 0.8mm |
DC - Cutting Diameter | 50mm |
FHA - Flute Helix Angle | 22deg |
ULDR - Usable Length Diameter Ratio | 3.01624 |
TCHAL - Achievable Hole Tolerance Lower | 0mm |
TCHAU - Achievable Hole Tolerance Upper | 0.28mm |
PL - Point Length | 0.812mm |
LCF - Chip Flute Length | 184.6mm |
SIG - Point Angle | 176deg |
ORDCODE | 880-D5000L40-03 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLISO_G4000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-04-19 13:52:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DE0805P_1 |
Hand | R |
MIID - Master Insert Identification | 880-0805W08H-P-GM |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 08P |
TCDCON - Connection Diameter Tolerance | h6 |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
