Sandvik Coromant 881-03 03 08M-P-GM1 4044 CoroDrill® 881 insert for drilling
R 256,45
inc. vat
In stock
SKU
5962754

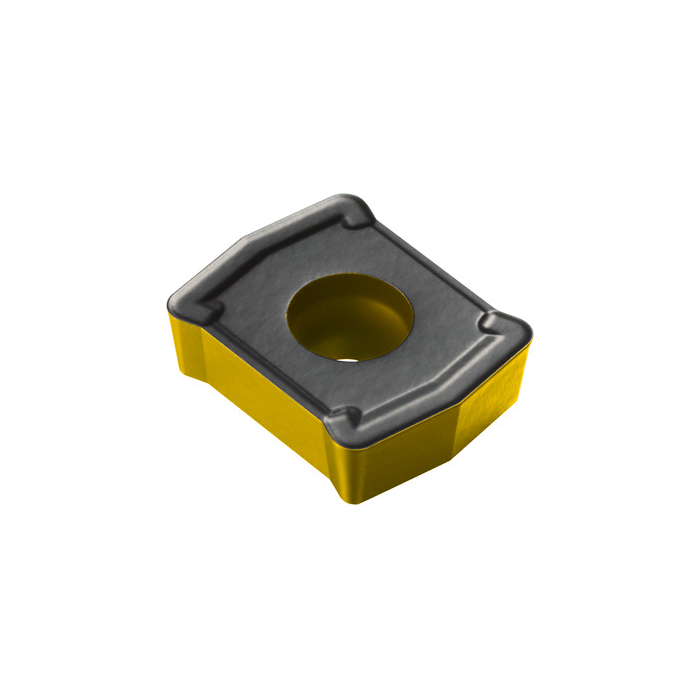

CoroDrill® 881 insert for drilling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 881 insert for drilling
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.6g |
| AN - Clearance Angle Major | 7deg |
| RE - Corner Radius | 0.8mm |
| Insert Thickness | 3.175mm |
| D1 - Fixing Hole Diameter | 2.5mm |
| BN - Face Land Width | 0.07mm |
| GB - Face Land Angle | 0deg |
| GAN - Insert Rake Angle | 18deg |
| ORDCODE | 881-03 03 08M-P-GM1 4044 |
| CHANGEDATE | 2022-09-21 12:29:00.000 |
| Hand | R |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 03 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MCOR_DA0303P_2 |
| Grade | 4044 |
| COATING | PVD TiAlN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | 53 |
| INSUC - Insert Usage Code | P |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | False |
