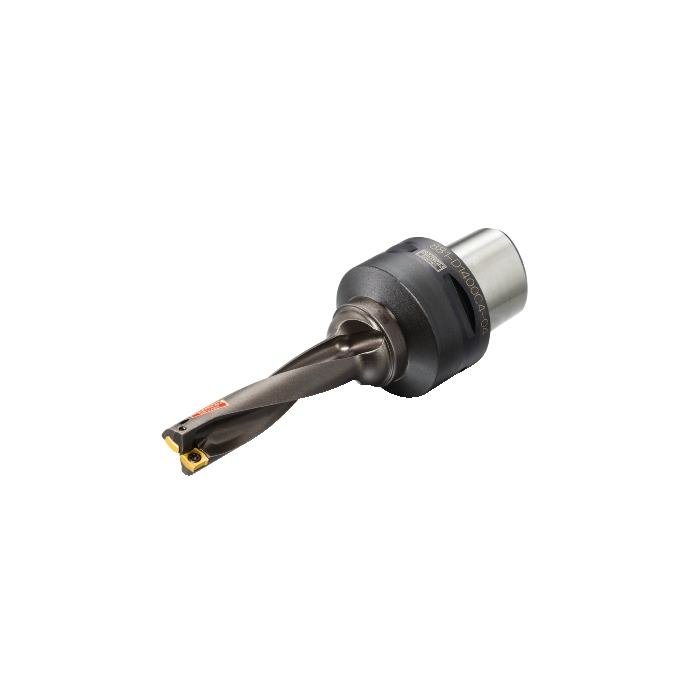

Sandvik Coromant 881-D1400C4-04 CoroDrill® 881 indexable insert drill

Name: Sandvik Coromant 881-D1400C4-04 CoroDrill® 881 indexable insert drill
SKU: 5962206
Price: 10683.50 ZAR
Availability: OutOfStock

R 10 683,50 inc. vat

Out of stock

SKU

5962206

CoroDrill® 881 indexable insert drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 881 indexable insert drill

More Information
CP - Coolant Pressure	1000000Pa
DFC - Functional Diameter	28mm
DCON - Connection Diameter	40mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	96.7276mm
BD - Body Diameter	14mm
LB - Body Length	59mm
BHTA - Body Half Taper Angle	0deg
RPMX - Rotational Speed Maximum	190001/min
WT - Weight Of Item	410.1g
OAL - Overall Length	121mm
OHX - Maximum Overhang	96.7276mm
KAPR - Tool Cutting Edge Angle	78deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	7deg
Insert Thickness	2.38125mm
LU - Usable Length	56mm
ADJLN - Minimum Adjustment Limit	0mm
ADJLX - Maximum Adjustment Limit	1mm
DC - Cutting Diameter	14mm
ULDR - Usable Length Diameter Ratio	4
TCHAL - Achievable Hole Tolerance Lower	-0.1mm
TCHAU - Achievable Hole Tolerance Upper	0.4mm
PL - Point Length	0.2724mm
SIG - Point Angle	156deg
ORDCODE	881-D1400C4-04
ADINTMS - Adaptive Interface Machine Direction	M_CCS01_C0400_1
CNSC - Coolant Entry Style Code	3
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2021-12-31 01:13:00.000
STDNO - Standard Number	ISO26623-1
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_DA0202P_2
Hand	R
MIID - Master Insert Identification	881-02 02 04M-C-GM1
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	02
CICT - Cutting Item Count	1
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
