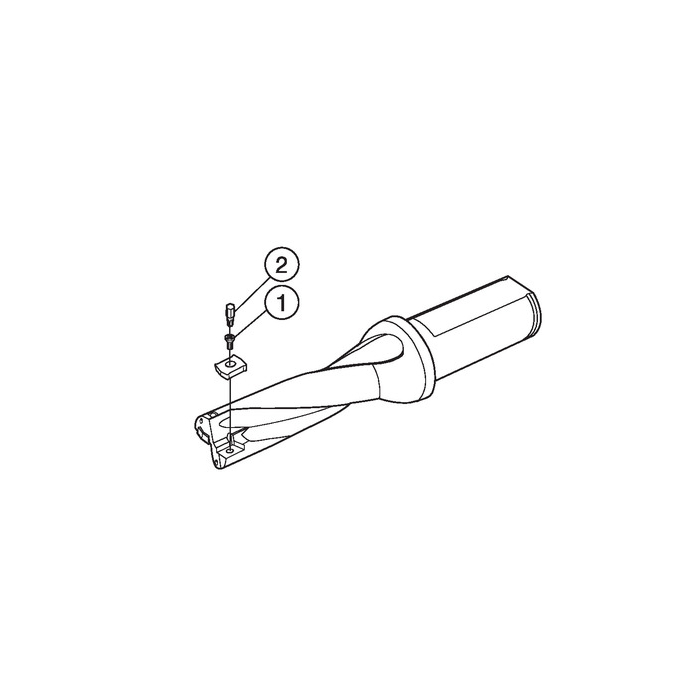

Sandvik Coromant 881-D1850L25-03 CoroDrill® 881 indexable insert drill

Name: Sandvik Coromant 881-D1850L25-03 CoroDrill® 881 indexable insert drill
SKU: 5962302
Price: 8527.25 ZAR
Availability: InStock

R 8 527,25 inc. vat

In stock

SKU

5962302

CoroDrill® 881 indexable insert drill

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroDrill® 881 indexable insert drill

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	25mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	74.2751mm
BD - Body Diameter	25mm
LB - Body Length	60mm
BHTA - Body Half Taper Angle	0deg
RPMX - Rotational Speed Maximum	215001/min
WT - Weight Of Item	369.2g
OAL - Overall Length	131mm
OHX - Maximum Overhang	74.2751mm
LSC - Clamping Length	56mm
KAPR - Tool Cutting Edge Angle	79deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	0deg
AN - Clearance Angle Major	7deg
Insert Thickness	3.175mm
H - Shank Height	23mm
LU - Usable Length	56mm
ADJLN - Minimum Adjustment Limit	0mm
ADJLX - Maximum Adjustment Limit	0.85mm
DC - Cutting Diameter	18.5mm
ULDR - Usable Length Diameter Ratio	3.027027027027
TCHAL - Achievable Hole Tolerance Lower	-0.1mm
TCHAU - Achievable Hole Tolerance Upper	0.3mm
PL - Point Length	0.7249mm
SIG - Point Angle	158deg
ORDCODE	881-D1850L25-03
ADINTMS - Adaptive Interface Machine Direction	M_CYLISO_G2500_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2021-11-11 18:44:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_DA0303P_2
Hand	R
MIID - Master Insert Identification	881-03 03 08M-P-GM1
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	03
TCDCON - Connection Diameter Tolerance	h6
CICT - Cutting Item Count	1
NOF - Flute Count	2
NROTF - Non Rotating Functionality	True
RTOF - Rotating Functionality	True
