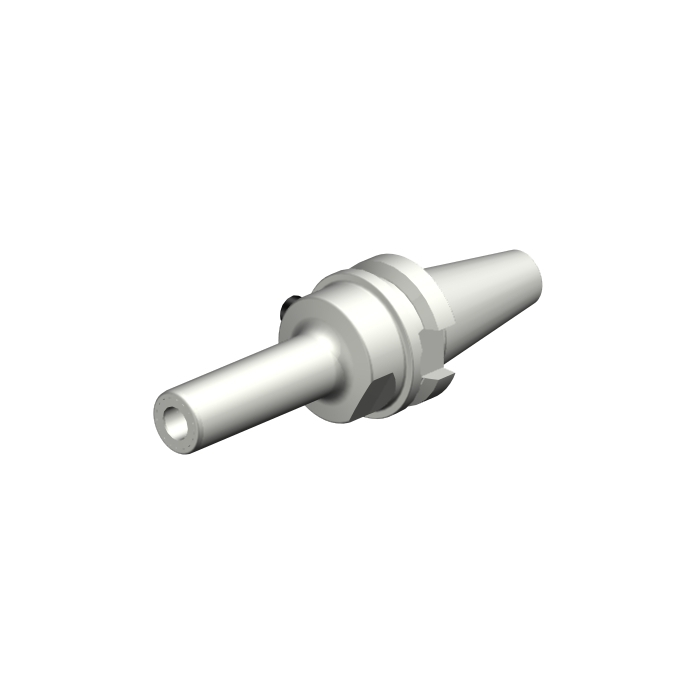

MAS-BT 403 to CoroChuck™ 930
Reliable nationwide shipping
Delivery in 4 - 5 days
MAS-BT 403 to CoroChuck™ 930
CP - Coolant Pressure | 8000000Pa |
---|---|
DFC - Functional Diameter | 31.75mm |
DCON - Connection Diameter | 10mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 98mm |
BD - Body Diameter | 46mm |
LB - Body Length | 98mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 8Nm |
RPMX - Rotational Speed Maximum | 250001/min |
WT - Weight Of Item | 0.624kg |
OAL - Overall Length | 146.4mm |
OHX - Maximum Overhang | 98mm |
LSC - Clamping Length | 41mm |
ORDCODE | 930-B30-P-10-098 |
ADINTMS - Adaptive Interface Machine Direction | M_SKG51_C0300_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CYLH_G1000_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
CRKS - Connection Retention Knob Thread Size | M12 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-01-20 09:34:00.000 |
STDLET - Standard Letter | AD |
STDNO - Standard Number | MAS403-BT |
DPC - Damping Property | False |
DCP - Data Chip Provision | False |
BBD - Balanced By Design | True |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
