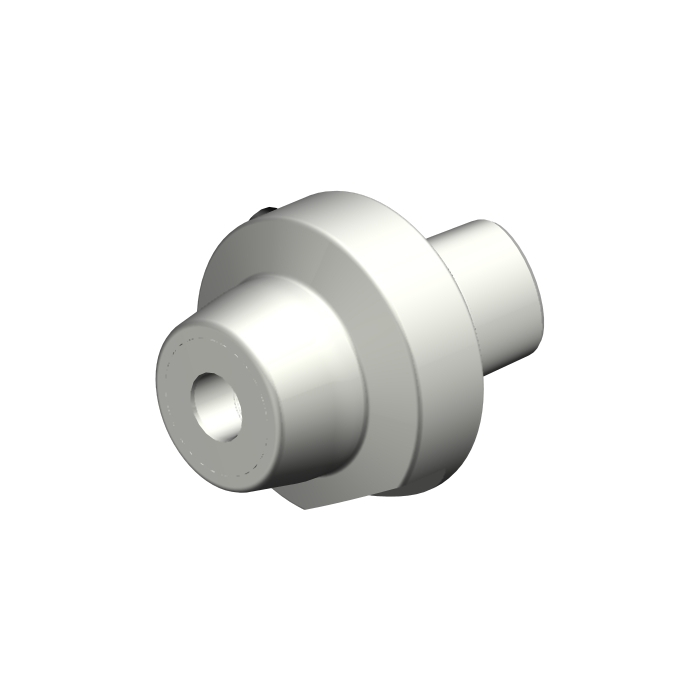

Sandvik Coromant 930-C3-T-10-038 Coromant Capto™ to CoroChuckâ„¢ 930
R 9 017,15
inc. vat
Out of stock
SKU
7864395
Coromant Capto® to CoroChuck™ 930
Reliable nationwide shipping
Delivery in 4 - 5 days
Coromant Capto® to CoroChuck™ 930
| CP - Coolant Pressure | 8000000Pa |
|---|---|
| DFC - Functional Diameter | 22mm |
| DCON - Connection Diameter | 10mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 38mm |
| BD - Body Diameter | 46mm |
| LB - Body Length | 38mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 8Nm |
| RPMX - Rotational Speed Maximum | 100001/min |
| WT - Weight Of Item | 0.297kg |
| OAL - Overall Length | 57mm |
| OHX - Maximum Overhang | 38mm |
| LSC - Clamping Length | 41mm |
| ORDCODE | 930-C3-T-10-038 |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS02_C0320_1 |
| ADINTWS - Adaptive Interface Workpiece Direction | W_CYLH_G1000_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 1 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-09-01 10:21:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| DPC - Damping Property | False |
| DCP - Data Chip Provision | False |
| BBD - Balanced By Design | True |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
