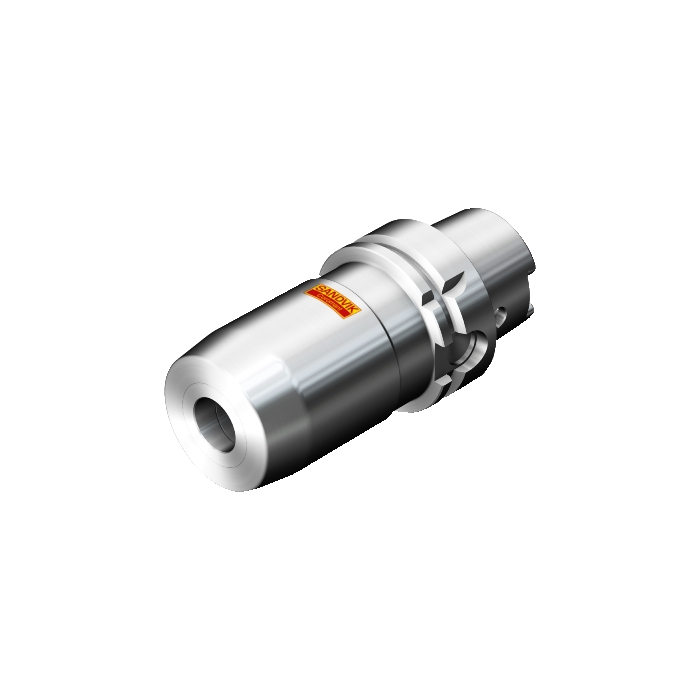

Sandvik Coromant 930-HA06-HD-A31-112 HSK to CoroChuckâ„¢ 930

Name: Sandvik Coromant 930-HA06-HD-A31-112 HSK to CoroChuckâ„¢ 930
SKU: 8278574
Price: 11619.60 ZAR
Availability: InStock

R 11 619,60 inc. vat

In stock

SKU

8278574

HSK to CoroChuck™ 930

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

HSK to CoroChuck™ 930

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	48.01mm
DCON - Connection Diameter	31.75mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	112mm
BD - Body Diameter	76mm
LB - Body Length	112mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	10Nm
RPMX - Rotational Speed Maximum	200001/min
WT - Weight Of Item	2.962kg
OAL - Overall Length	144mm
OHX - Maximum Overhang	112mm
LSC - Clamping Length	61mm
OHN - Minimum Overhang	112mm
ORDCODE	930-HA06-HD-A31-112
ADINTMS - Adaptive Interface Machine Direction	M_HSK01_C0630_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CYLH_S1250_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	1
DCPS - Data Chip Provision Size	2
BMC - Body Material Code	1
CHANGEDATE	2022-09-07 12:11:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	DIN69893-1
DPC - Damping Property	False
DCP - Data Chip Provision	True
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
