Sandvik Coromant A316-10CM400-03745G 1730 CoroMill™ 316 solid carbide head for chamfer milling
Next
Sandvik Coromant A316-12CM210-05045G 1730 CoroMill™ 316 solid carbide head for chamfer milling
Previous
R 1 442,10
inc. vat
In stock
SKU
7611816

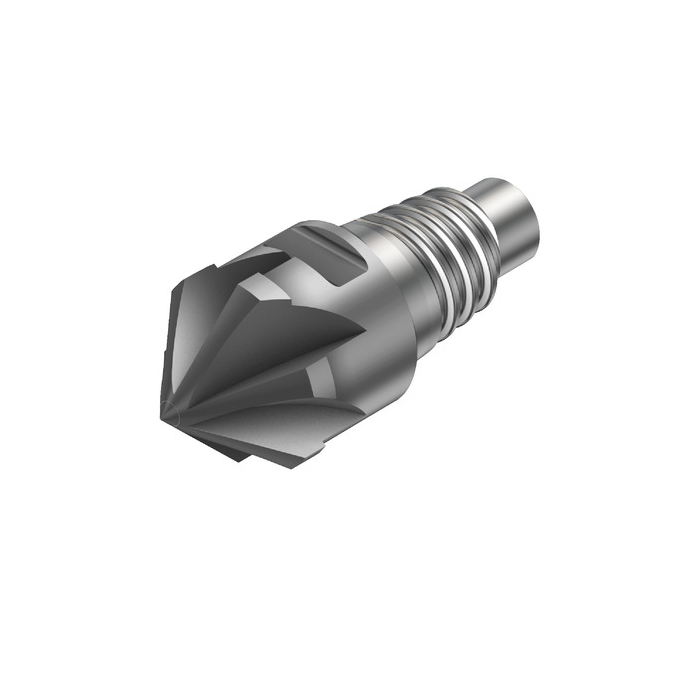

CoroMill® 316 solid carbide head for chamfer milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for chamfer milling
DCON - Connection Diameter | 9.25mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 12.4mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.022kg |
OAL - Overall Length | 23.6mm |
OHX - Maximum Overhang | 12.4mm |
KAPR - Tool Cutting Edge Angle | 60deg |
APMX - Depth Of Cut Maximum | 5.65mm |
DC - Cutting Diameter | 3mm |
DN - Neck Diameter | 9.25mm |
GAMF - Radial Rake Angle | 1.5deg |
GAMP - Axial Rake Angle | 1.5deg |
DCX - Maximum Cutting Diameter | 9.525mm |
ORDCODE | A316-10CM400-03760G 1730 |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_B0100_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-22 16:10:00.000 |
Hand | R |
Grade | 1730 |
COATING | PVD AlTiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
ZEFP - Peripheral Effective Cutting Edge Count | 4 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
