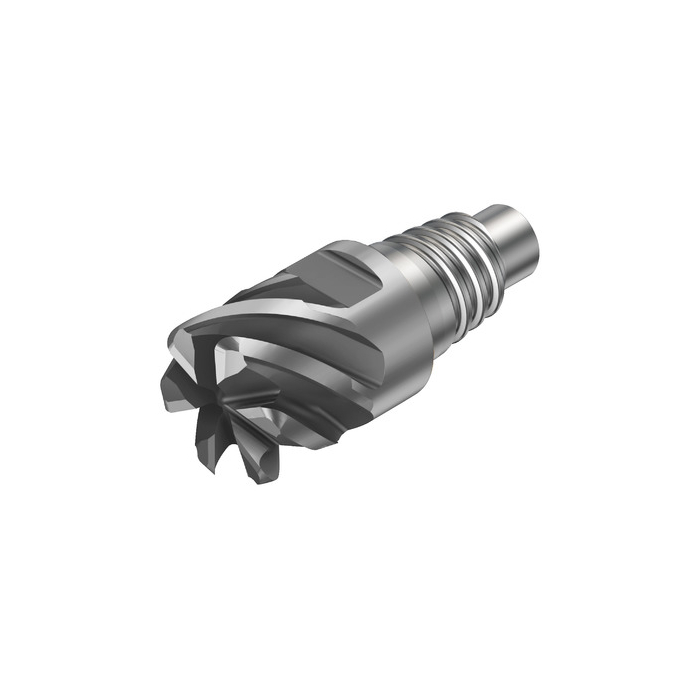

Sandvik Coromant A316-12FM650-05015L 1730 CoroMill™ 316 solid carbide head for Finishing
Next
Sandvik Coromant A316-10SM450C03708P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling
Previous
![Sandvik Coromant A316-12FM650-05015L 1730 CoroMill™ 316 solid carbide head for Finishing](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/6992377cd/sandvik-coromant-a316-12fm650-05015l-1730-coromilltm-316-solid-carbide-head-for-finishing.jpg)
![Sandvik Coromant A316-10SM450C03708P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/699129e77/sandvik-coromant-a316-10sm450c03708p-1730-coromilltm-316-solid-carbide-head-for-stable-multi-operations-milling.jpg)
R 1 652,55
inc. vat
In stock
SKU
7611840
CoroMill® 316 solid carbide head for Finishing
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for Finishing
DCON - Connection Diameter | 12.3mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 14.6mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.038kg |
OAL - Overall Length | 28.4mm |
OHX - Maximum Overhang | 14.6mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
RE - Corner Radius | 0.381mm |
APMX - Depth Of Cut Maximum | 7mm |
DC - Cutting Diameter | 12.7mm |
DCF - Cutting Diameter Face Contact | 11.938mm |
DN - Neck Diameter | 12.3mm |
FHA - Flute Helix Angle | 50deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ORDCODE | A316-12FM650-05004L 1730 |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_B0120_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 10:20:00.000 |
Hand | R |
Grade | 1730 |
COATING | PVD AlTiN |
SUBSTRATE | HC |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 6 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | False |
