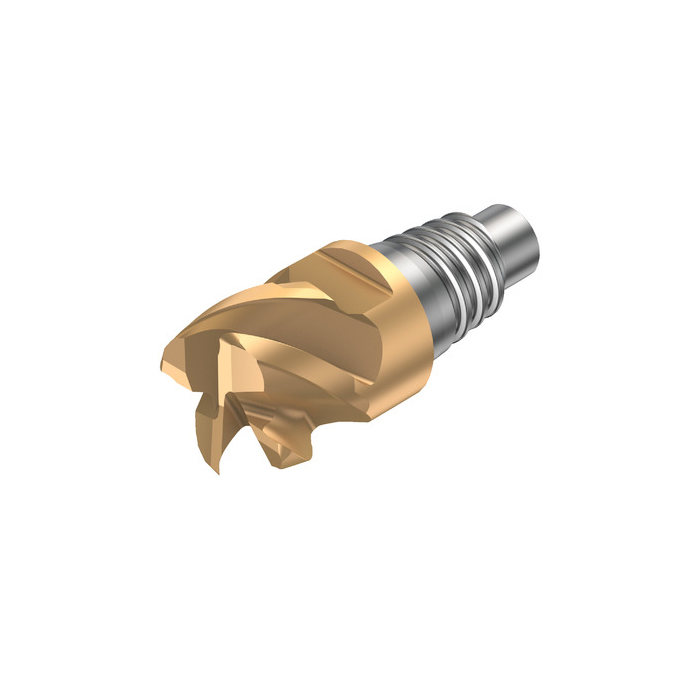

Sandvik Coromant A316-12SM450-05015P 1030 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling

Name: Sandvik Coromant A316-12SM450-05015P 1030 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling
SKU: 5722537
Price: 1504.20 ZAR
Availability: InStock

Be the first to review this product

R 1 504,20 inc. vat

In stock

SKU

5722537

CoroMill® 316 solid carbide head for Stable Multi-Operations milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head for Stable Multi-Operations milling

More Information

More Information
DCON - Connection Diameter	12.3mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	14.6mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.036kg
OAL - Overall Length	28.4mm
OHX - Maximum Overhang	14.6mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	1.5748mm
APMX - Depth Of Cut Maximum	7mm
DC - Cutting Diameter	12.7mm
DCF - Cutting Diameter Face Contact	9.5504mm
DN - Neck Diameter	12.3mm
FHA - Flute Helix Angle	50deg
GAMF - Radial Rake Angle	10.5deg
GAMP - Axial Rake Angle	13.5deg
ORDCODE	A316-12SM450-05015P 1030
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_B0120_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 09:15:00.000
Hand	R
Grade	1030
COATING	PVD TiAlN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	4
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
