Sandvik Coromant A316-16CM800-06245G 1730 CoroMill™ 316 solid carbide head for chamfer milling
Next
Sandvik Coromant A316-16CM800-06260G 1730 CoroMill™ 316 solid carbide head for chamfer milling
Previous
![Sandvik Coromant A316-16CM800-06245G 1730 CoroMill™ 316 solid carbide head for chamfer milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/69940913e/sandvik-coromant-a316-16cm800-06245g-1730-coromilltm-316-solid-carbide-head-for-chamfer-milling.jpg)
![Sandvik Coromant A316-16CM800-06260G 1730 CoroMill™ 316 solid carbide head for chamfer milling](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/699423230/sandvik-coromant-a316-16cm800-06260g-1730-coromilltm-316-solid-carbide-head-for-chamfer-milling.jpg)
R 3 211,95
inc. vat
In stock
SKU
7611859

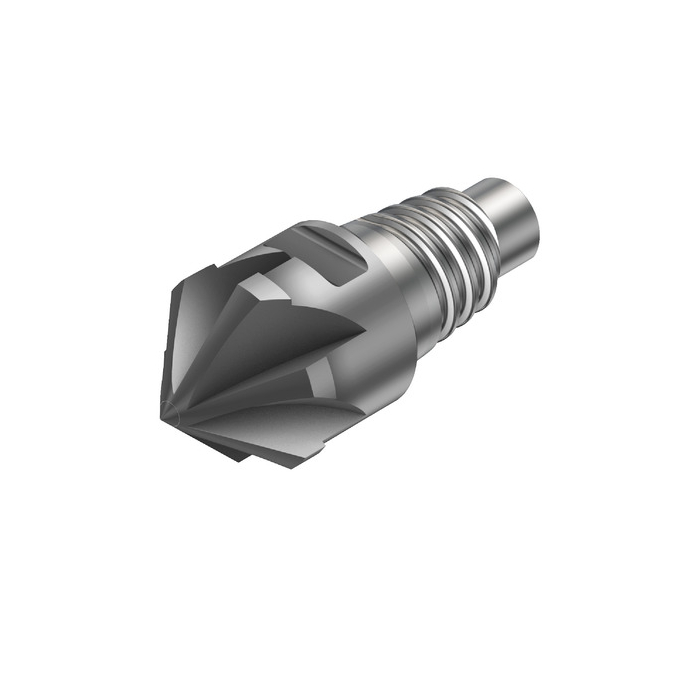

CoroMill® 316 solid carbide head for chamfer milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for chamfer milling
DCON - Connection Diameter | 15.5mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 18.7mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.062kg |
OAL - Overall Length | 35.7mm |
OHX - Maximum Overhang | 18.7mm |
KAPR - Tool Cutting Edge Angle | 49deg |
APMX - Depth Of Cut Maximum | 7.4mm |
DC - Cutting Diameter | 3mm |
DN - Neck Diameter | 15.5mm |
GAMF - Radial Rake Angle | 1.5deg |
GAMP - Axial Rake Angle | 1.5deg |
DCX - Maximum Cutting Diameter | 15.875mm |
ORDCODE | A316-16CM800-06249G 1730 |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_B0160_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2021-12-22 16:12:00.000 |
Hand | R |
Grade | 1730 |
COATING | PVD AlTiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | STRAIGHT |
ZEFP - Peripheral Effective Cutting Edge Count | 8 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
