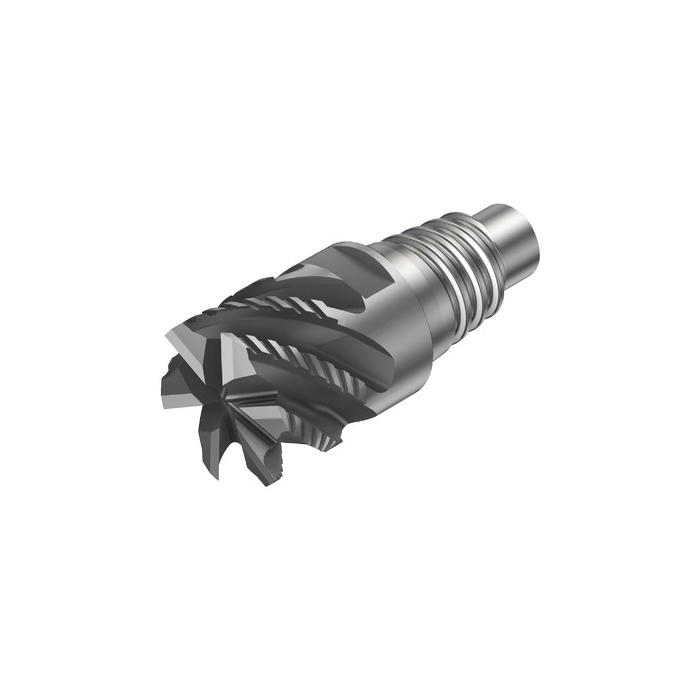

Sandvik Coromant A316-20SM645-07504K 1730 CoroMill™ 316 solid carbide head for roughing with chip breaker

Name: Sandvik Coromant A316-20SM645-07504K 1730 CoroMill™ 316 solid carbide head for roughing with chip breaker
SKU: 7611885
Price: 3055.55 ZAR
Availability: InStock

Be the first to review this product

R 3 055,55 inc. vat

In stock

SKU

7611885

CoroMill® 316 solid carbide head for roughing with chip breaker

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head for roughing with chip breaker

More Information

More Information
DCON - Connection Diameter	18.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	21.3mm
RPMX - Rotational Speed Maximum	800001/min
WT - Weight Of Item	0.12kg
OAL - Overall Length	40.8mm
OHX - Maximum Overhang	21.3mm
KAPR - Tool Cutting Edge Angle	90deg
RMPX - Maximum Ramping Angle	5deg
RE - Corner Radius	0.4mm
APMX - Depth Of Cut Maximum	10.5mm
DC - Cutting Diameter	19.05mm
DCF - Cutting Diameter Face Contact	18.25mm
DN - Neck Diameter	18.5mm
FHA - Flute Helix Angle	45deg
GAMF - Radial Rake Angle	-9deg
GAMP - Axial Rake Angle	2deg
ORDCODE	A316-20SM645-07504K 1730
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_B0200_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:21:00.000
Hand	R
Grade	1730
COATING	PVD AlTiN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	True
CPDF - Cutting Pitch Differential	False
