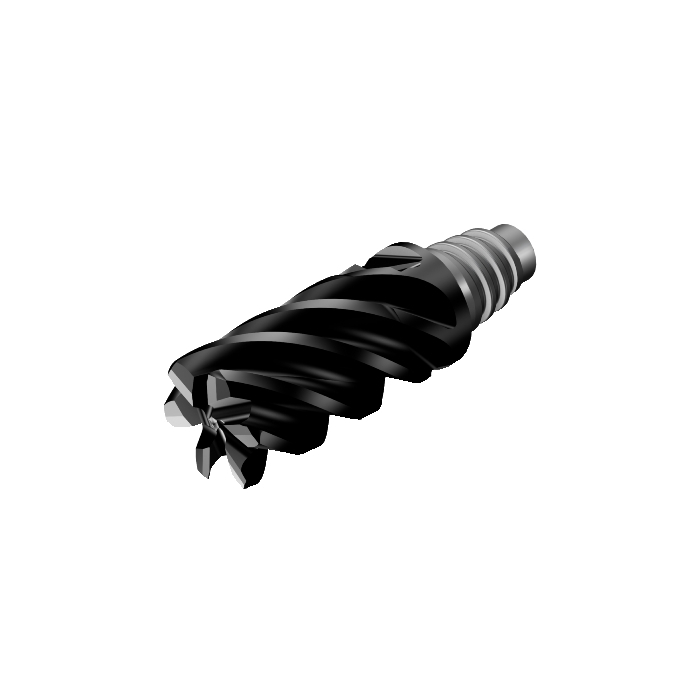

Sandvik Coromant A316-25FL642-10031L 1745 CoroMill™ 316 solid carbide head for High Feed Side milling

Name: Sandvik Coromant A316-25FL642-10031L 1745 CoroMill™ 316 solid carbide head for High Feed Side milling
SKU: 7488182
Price: 7665.90 ZAR
Availability: InStock

Be the first to review this product

R 7 665,90 inc. vat

In stock

SKU

7488182

CoroMill® 316 solid carbide head for High Feed Side milling

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 316 solid carbide head for High Feed Side milling

More Information

More Information
DCON - Connection Diameter	24.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	51.6mm
RPMX - Rotational Speed Maximum	350001/min
WT - Weight Of Item	0.328kg
OAL - Overall Length	75.6mm
OHX - Maximum Overhang	51.6mm
KAPR - Tool Cutting Edge Angle	90deg
RE - Corner Radius	3.048mm
APMX - Depth Of Cut Maximum	38.1mm
DC - Cutting Diameter	25.4mm
DCF - Cutting Diameter Face Contact	19.304mm
DN - Neck Diameter	24.5mm
FHA - Flute Helix Angle	42deg
GAMF - Radial Rake Angle	5deg
GAMP - Axial Rake Angle	5deg
ORDCODE	A316-25FL642-10031L 1745
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_B0250_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	2
CHANGEDATE	2022-04-22 10:28:00.000
Hand	R
Grade	1745
COATING	PVD TiAlSiN
SUBSTRATE	HC
BSG - Basic Standard Group	COROMANT
ZEFP - Peripheral Effective Cutting Edge Count	6
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CCC - Center Cutting Capability	False
CPDF - Cutting Pitch Differential	True
