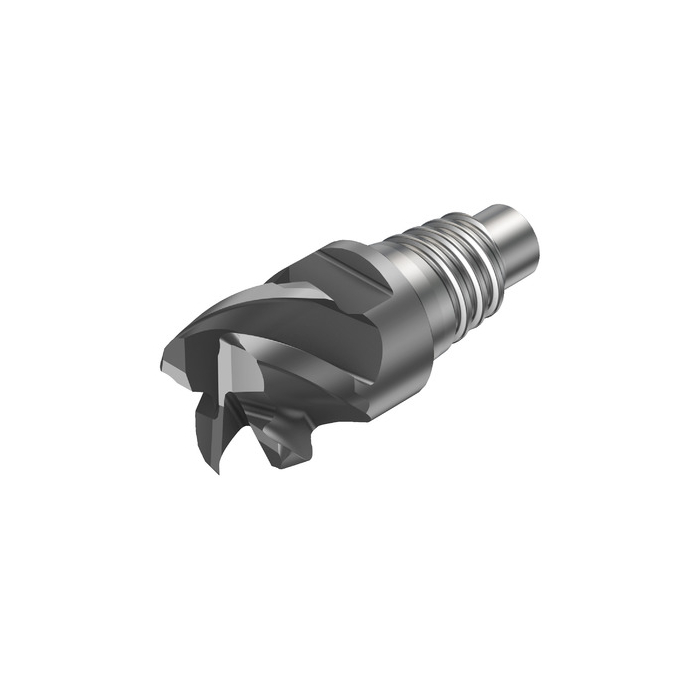

Sandvik Coromant A316-25SM550-10063P 1730 CoroMill™ 316 solid carbide head for Stable Multi-Operations milling
R 3 805,35
inc. vat
In stock
SKU
7611893
CoroMill® 316 solid carbide head for Stable Multi-Operations milling
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 316 solid carbide head for Stable Multi-Operations milling
DCON - Connection Diameter | 24.5mm |
---|---|
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 25.6mm |
RPMX - Rotational Speed Maximum | 800001/min |
WT - Weight Of Item | 0.205kg |
OAL - Overall Length | 49.6mm |
OHX - Maximum Overhang | 25.6mm |
KAPR - Tool Cutting Edge Angle | 90deg |
RMPX - Maximum Ramping Angle | 5deg |
RE - Corner Radius | 6.35mm |
APMX - Depth Of Cut Maximum | 14mm |
DC - Cutting Diameter | 25.4mm |
DCF - Cutting Diameter Face Contact | 12.7mm |
DN - Neck Diameter | 24.5mm |
FHA - Flute Helix Angle | 50deg |
GAMF - Radial Rake Angle | 10.5deg |
GAMP - Axial Rake Angle | 13.5deg |
ORDCODE | A316-25SM550-10063P 1730 |
ADINTMS - Adaptive Interface Machine Direction | M_SAT01_B0250_1 |
CNSC - Coolant Entry Style Code | 0 |
CXSC - Coolant Exit Style Code | 0 |
BMC - Body Material Code | 2 |
CHANGEDATE | 2022-04-22 10:21:00.000 |
Hand | R |
Grade | 1730 |
COATING | PVD AlTiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | VFD |
BSG - Basic Standard Group | COROMANT |
ZEFP - Peripheral Effective Cutting Edge Count | 5 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CCC - Center Cutting Capability | True |
CPDF - Cutting Pitch Differential | False |
