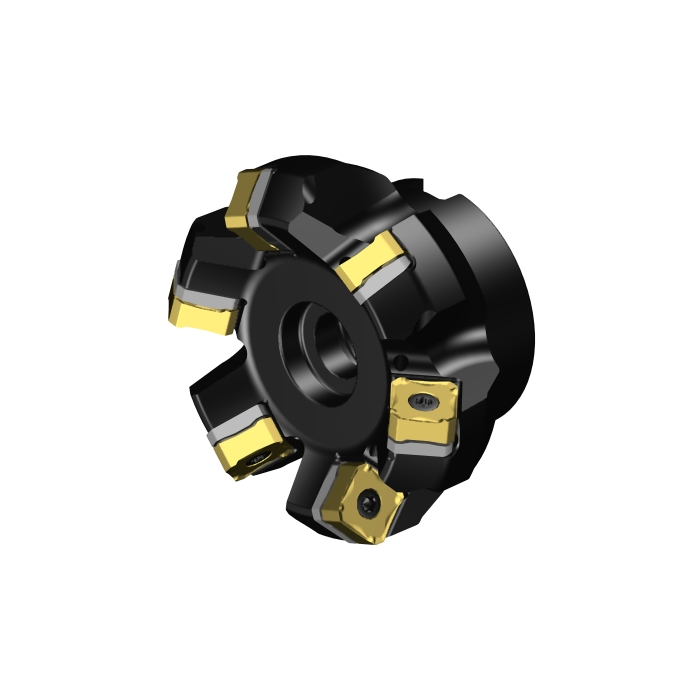

Sandvik Coromant A345-063R25-13H CoroMill™ 345 face milling cutter

Name: Sandvik Coromant A345-063R25-13H CoroMill™ 345 face milling cutter
SKU: 5722735
Price: 11477.00 ZAR
Availability: InStock

R 11 477,00 inc. vat

In stock

SKU

5722735

CoroMill® 345 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 345 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	25.4mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	45mm
TQ - Torque	3Nm
RPMX - Rotational Speed Maximum	154001/min
WT - Weight Of Item	0.69kg
OAL - Overall Length	45mm
OHX - Maximum Overhang	45mm
KAPR - Tool Cutting Edge Angle	45deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	12.3deg
LAMS - Inclination Angle	3.5deg
AN - Clearance Angle Major	0deg
IC - Inscribed Circle Diameter	13mm
Insert Thickness	5.05mm
APMX - Depth Of Cut Maximum	6mm
DC - Cutting Diameter	63.5mm
DCF - Cutting Diameter Face Contact	63.5mm
GAMF - Radial Rake Angle	6.32969823deg
GAMP - Axial Rake Angle	11.16787426deg
DCX - Maximum Cutting Diameter	77.58mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	A345-063R25-13H
ADINTMS - Adaptive Interface Machine Direction	M_FDA1A1_S1000_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	2
BMC - Body Material Code	1
CHANGEDATE	2022-05-04 11:45:00.000
STDLET - Standard Letter	A
STDNO - Standard Number	ISO6462
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_ME1305_1
Hand	R
MIID - Master Insert Identification	345R-1305
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	13
CICT - Cutting Item Count	6
ZEFP - Peripheral Effective Cutting Edge Count	6
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
