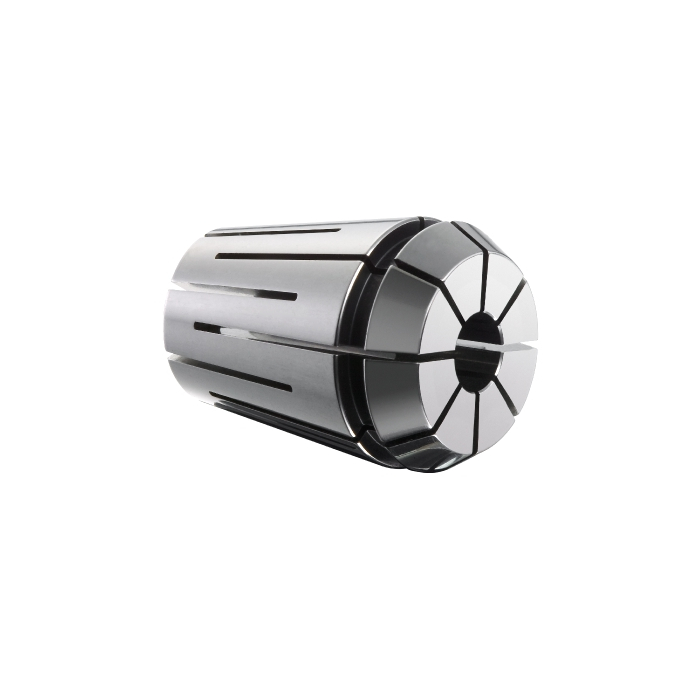

Sandvik Coromant A393.15-40 3/4 ER collet ER collet
Next
Sandvik Coromant A393.15-40 1/2 ER collet ER collet
Previous
![Sandvik Coromant A393.15-40 3/4 ER collet ER collet](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/65863b706/sandvik-coromant-a393-15-40-3-4-er-collet-er-collet.jpg)
![Sandvik Coromant A393.15-40 1/2 ER collet ER collet](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/65861d915/sandvik-coromant-a393-15-40-1-2-er-collet-er-collet.jpg)
R 1 934,30
inc. vat
In stock
SKU
5966370
ER collet
Reliable nationwide shipping
Delivery in 4 - 5 days
ER collet
CP - Coolant Pressure | 30000000Pa |
---|---|
DFC - Functional Diameter | 40mm |
DCON - Connection Diameter | 6.35mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 14.66mm |
BD - Body Diameter | 41mm |
WT - Weight Of Item | 0.291kg |
OAL - Overall Length | 46mm |
OHX - Maximum Overhang | 14.66mm |
LSC - Clamping Length | 46mm |
ORDCODE | A393.15-40 1/4 |
ADINTMS - Adaptive Interface Machine Direction | M_CLTERB_C0400_1 |
ADINTWS - Adaptive Interface Workpiece Direction | W_CYLER2_R2500_2 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 1 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2021-12-21 01:03:00.000 |
TCDCON - Connection Diameter Tolerance | h9 |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
SEAL - Sealing Property | True |
