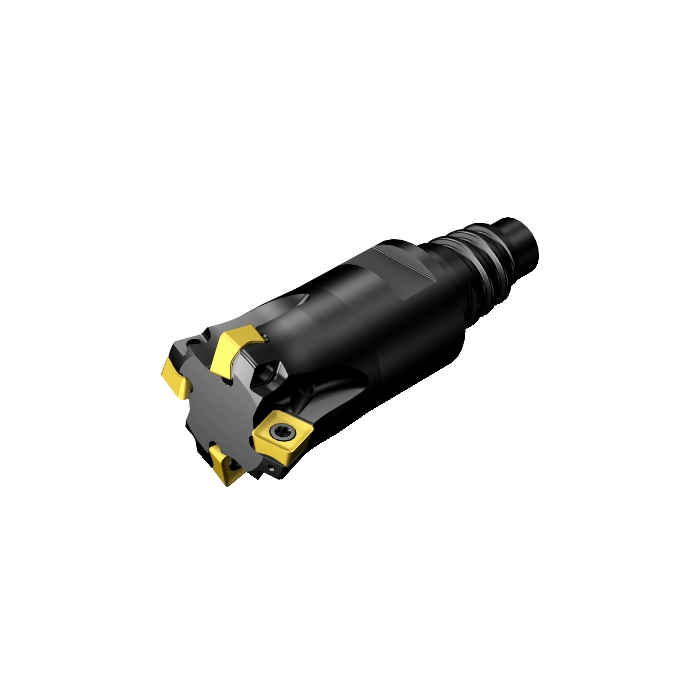

Sandvik Coromant A415-16EH16-05H CoroMill™ 415 face milling cutter

Name: Sandvik Coromant A415-16EH16-05H CoroMill™ 415 face milling cutter
SKU: 7082544
Price: 5919.05 ZAR
Availability: InStock

R 5 919,05 inc. vat

In stock

SKU

7082544

CoroMill® 415 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 415 face milling cutter

More Information
CP - Coolant Pressure	1000000Pa
DCON - Connection Diameter	15.5mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	30mm
BD - Body Diameter	11.875mm
LB - Body Length	12mm
BHTA - Body Half Taper Angle	0deg
TQ - Torque	0.6Nm
RPMX - Rotational Speed Maximum	213001/min
WT - Weight Of Item	0.037kg
OAL - Overall Length	47mm
OHX - Maximum Overhang	30mm
KAPR - Tool Cutting Edge Angle	15deg
RMPX - Maximum Ramping Angle	0.97deg
GAMO - Orthogonal Rake Angle	0deg
LAMS - Inclination Angle	-7deg
AN - Clearance Angle Major	11deg
IC - Inscribed Circle Diameter	5mm
Insert Thickness	2.21mm
APMX - Depth Of Cut Maximum	0.85mm
DC - Cutting Diameter	7.5mm
DCF - Cutting Diameter Face Contact	7.5mm
GAMF - Radial Rake Angle	6.76372892deg
GAMP - Axial Rake Angle	-1.82018904deg
DCX - Maximum Cutting Diameter	15.875mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	A415-16EH16-05H
ADINTMS - Adaptive Interface Machine Direction	M_SAT01_B0160_1
CNSC - Coolant Entry Style Code	1
CXSC - Coolant Exit Style Code	3
BMC - Body Material Code	1
CHANGEDATE	2022-06-15 15:16:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NR0502_1
Hand	R
MIID - Master Insert Identification	415N-050206M
IFS - Insert Mounting Style Code	3
SC - Insert Shape Code	S
SSC - Insert Seat Size Code	05
CICT - Cutting Item Count	3
ZEFP - Peripheral Effective Cutting Edge Count	3
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
