R 5 637,30
inc. vat
In stock
SKU
7082551

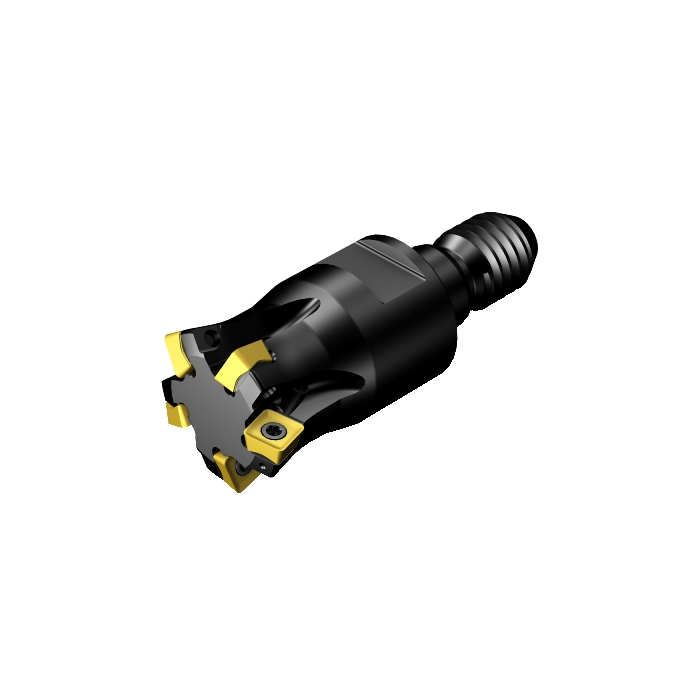

CoroMill® 415 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 415 face milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 12.8mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 25mm |
BD - Body Diameter | 11.875mm |
LB - Body Length | 10mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 0.6Nm |
RPMX - Rotational Speed Maximum | 213001/min |
WT - Weight Of Item | 0.023kg |
OAL - Overall Length | 42.494mm |
OHX - Maximum Overhang | 25mm |
KAPR - Tool Cutting Edge Angle | 15deg |
RMPX - Maximum Ramping Angle | 0.97deg |
GAMO - Orthogonal Rake Angle | 0deg |
LAMS - Inclination Angle | -7deg |
AN - Clearance Angle Major | 11deg |
IC - Inscribed Circle Diameter | 5mm |
Insert Thickness | 2.21mm |
APMX - Depth Of Cut Maximum | 0.85mm |
DC - Cutting Diameter | 7.5mm |
DCF - Cutting Diameter Face Contact | 7.5mm |
GAMF - Radial Rake Angle | 6.76372892deg |
GAMP - Axial Rake Angle | -1.82018904deg |
DCX - Maximum Cutting Diameter | 15.875mm |
AZ - Maximum Plunge Depth | 0mm |
ORDCODE | A415-16T08-05H |
ADINTMS - Adaptive Interface Machine Direction | M_SAC03_A0080_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-06-15 15:16:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NR0502_1 |
Hand | R |
MIID - Master Insert Identification | 415N-050206M |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 05 |
TDZ - Thread Diameter Size | M 8 |
CICT - Cutting Item Count | 3 |
ZEFP - Peripheral Effective Cutting Edge Count | 3 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
