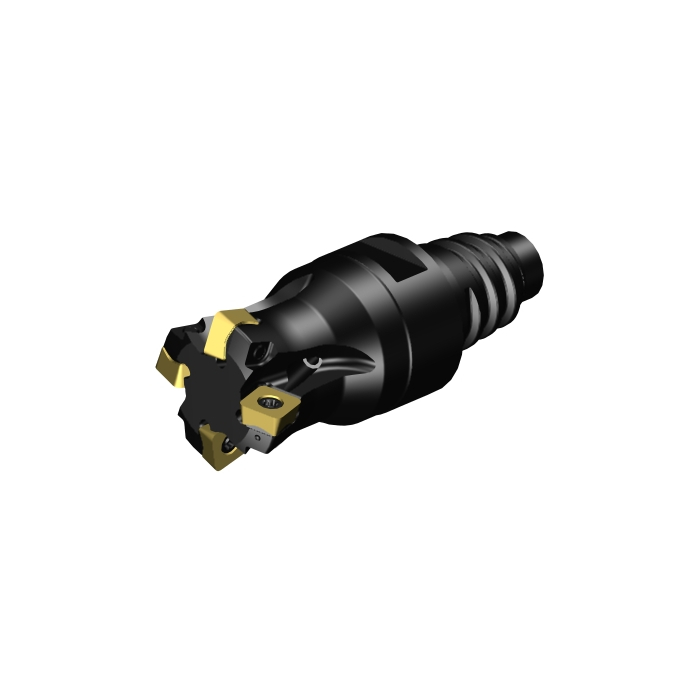

Sandvik Coromant A415-25EH25-07H CoroMill™ 415 face milling cutter
R 6 805,70
inc. vat
In stock
SKU
7082556
CoroMill® 415 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 415 face milling cutter
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 24.5mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 40mm |
| BD - Body Diameter | 19.4mm |
| LB - Body Length | 18mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 1.2Nm |
| RPMX - Rotational Speed Maximum | 157001/min |
| WT - Weight Of Item | 0.128kg |
| OAL - Overall Length | 64mm |
| OHX - Maximum Overhang | 40mm |
| KAPR - Tool Cutting Edge Angle | 15deg |
| RMPX - Maximum Ramping Angle | 0.61deg |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | -8deg |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 7mm |
| Insert Thickness | 3.07mm |
| APMX - Depth Of Cut Maximum | 1.2mm |
| DC - Cutting Diameter | 14mm |
| DCF - Cutting Diameter Face Contact | 14mm |
| GAMF - Radial Rake Angle | 7.73075978deg |
| GAMP - Axial Rake Angle | -2.08319514deg |
| DCX - Maximum Cutting Diameter | 25.4mm |
| AZ - Maximum Plunge Depth | 0mm |
| ORDCODE | A415-25EH25-07H |
| ADINTMS - Adaptive Interface Machine Direction | M_SAT01_B0250_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-06-15 15:16:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NR0703_1 |
| Hand | R |
| MIID - Master Insert Identification | 415N-070310M |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 07 |
| CICT - Cutting Item Count | 4 |
| ZEFP - Peripheral Effective Cutting Edge Count | 4 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
