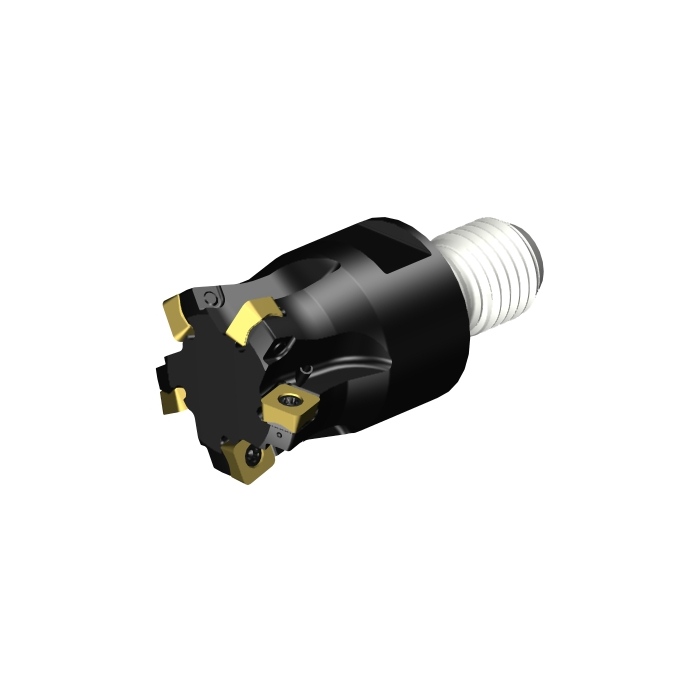

Sandvik Coromant A415-32T16-07H CoroMill™ 415 face milling cutter

R 7 327,80 inc. vat
In stock
SKU
7082560
CoroMill® 415 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 415 face milling cutter
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 28.8mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 40mm
BD - Body Diameter 25.75mm
LB - Body Length 15mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 1.2Nm
RPMX - Rotational Speed Maximum 139001/min
WT - Weight Of Item 0.187kg
OAL - Overall Length 64mm
OHX - Maximum Overhang 40mm
KAPR - Tool Cutting Edge Angle 15deg
RMPX - Maximum Ramping Angle 0.63deg
GAMO - Orthogonal Rake Angle 0deg
LAMS - Inclination Angle -8deg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 7mm
Insert Thickness 3.07mm
APMX - Depth Of Cut Maximum 1.2mm
DC - Cutting Diameter 20.3mm
DCF - Cutting Diameter Face Contact 20.3mm
GAMF - Radial Rake Angle 7.73075978deg
GAMP - Axial Rake Angle -2.08319514deg
DCX - Maximum Cutting Diameter 31.75mm
AZ - Maximum Plunge Depth 0mm
ORDCODE A415-32T16-07H
ADINTMS - Adaptive Interface Machine Direction M_SAC03_A0160_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-06-15 15:16:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_NR0703_1
Hand R
MIID - Master Insert Identification 415N-070310M
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 07
TDZ - Thread Diameter Size M 16
CICT - Cutting Item Count 5
ZEFP - Peripheral Effective Cutting Edge Count 5
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential False
