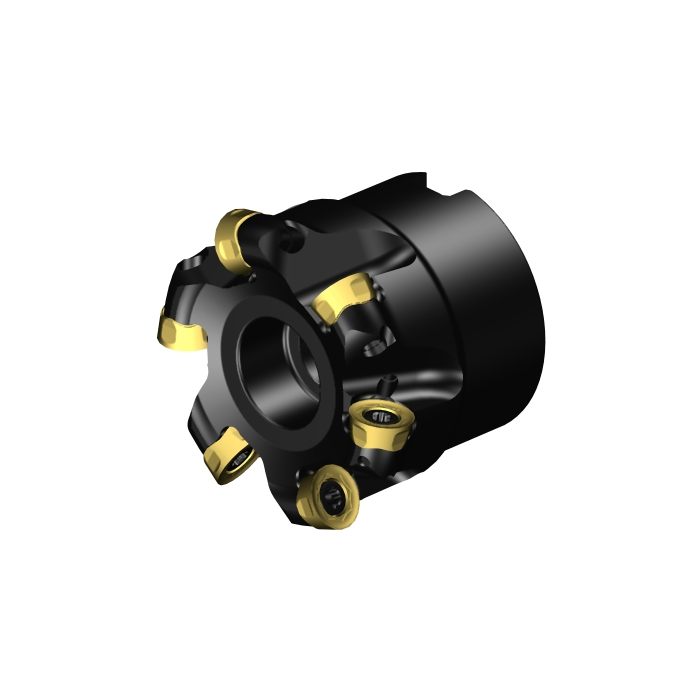

Sandvik Coromant A600-051R19-10H CoroMill™ 600 face milling cutter

R 10 113,10 inc. vat
Out of stock
SKU
7082841
CoroMill® 600 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 600 face milling cutter
More Information
CP - Coolant Pressure 5000000Pa
DCON - Connection Diameter 19.05mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 40mm
RPMX - Rotational Speed Maximum 201001/min
WT - Weight Of Item 0.306kg
OAL - Overall Length 40mm
OHX - Maximum Overhang 40mm
RMPX - Maximum Ramping Angle 3deg
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 10mm
Insert Thickness 4.5mm
APMX - Depth Of Cut Maximum 5mm
DC - Cutting Diameter 40.8mm
DCF - Cutting Diameter Face Contact 40.8mm
DCX - Maximum Cutting Diameter 50.8mm
AZ - Maximum Plunge Depth 1.5mm
ORDCODE A600-051R19-10H
ADINTMS - Adaptive Interface Machine Direction M_FDA1A1_R7500_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-07-05 10:06:00.000
STDLET - Standard Letter A
STDNO - Standard Number ISO6462
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_NM1045_1
Hand R
MIID - Master Insert Identification 600-1045
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code R
SSC - Insert Seat Size Code 10
CICT - Cutting Item Count 6
ZEFP - Peripheral Effective Cutting Edge Count 6
DPC - Damping Property False
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
