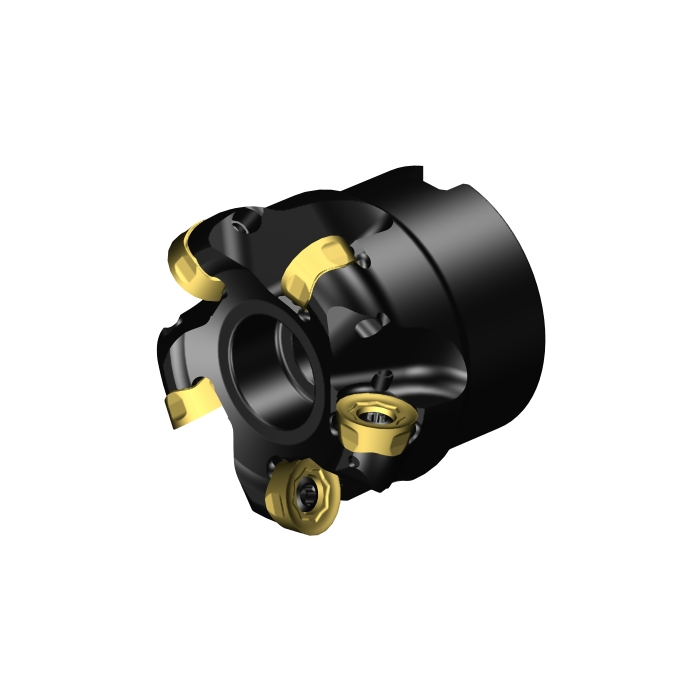

Sandvik Coromant A600-051R19-12H CoroMill™ 600 face milling cutter
R 9 404,70
inc. vat
In stock
SKU
7082843
CoroMill® 600 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 600 face milling cutter
| CP - Coolant Pressure | 5000000Pa |
|---|---|
| DCON - Connection Diameter | 19.05mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 40mm |
| RPMX - Rotational Speed Maximum | 185001/min |
| WT - Weight Of Item | 0.295kg |
| OAL - Overall Length | 40mm |
| OHX - Maximum Overhang | 40mm |
| RMPX - Maximum Ramping Angle | 4deg |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 12mm |
| Insert Thickness | 5.2mm |
| APMX - Depth Of Cut Maximum | 6mm |
| DC - Cutting Diameter | 38.8mm |
| DCF - Cutting Diameter Face Contact | 38.8mm |
| DCX - Maximum Cutting Diameter | 50.8mm |
| AZ - Maximum Plunge Depth | 2mm |
| ORDCODE | A600-051R19-12H |
| ADINTMS - Adaptive Interface Machine Direction | M_FDA1A1_R7500_1 |
| CNSC - Coolant Entry Style Code | 1 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-03-22 12:24:00.000 |
| STDLET - Standard Letter | A |
| STDNO - Standard Number | ISO6462 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NM1252_1 |
| Hand | R |
| MIID - Master Insert Identification | 600-1252 |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | R |
| SSC - Insert Seat Size Code | 12 |
| CICT - Cutting Item Count | 5 |
| ZEFP - Peripheral Effective Cutting Edge Count | 5 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | True |
