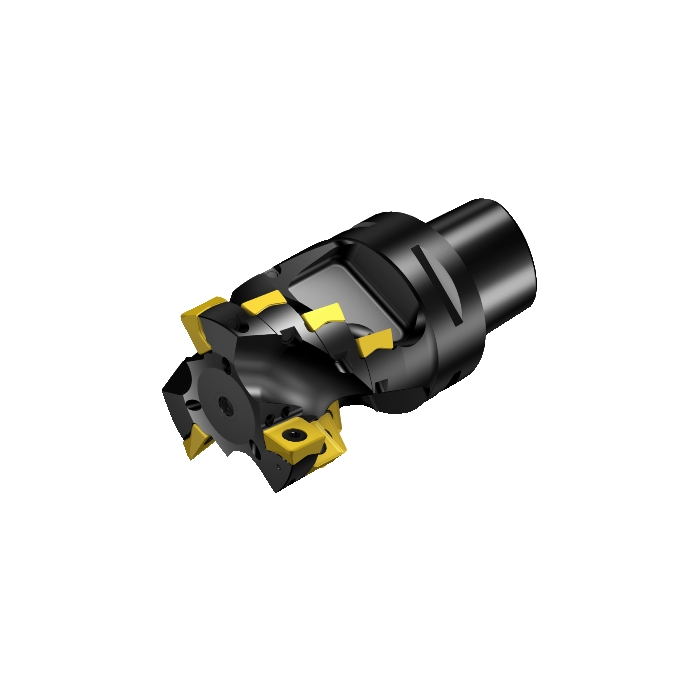

Sandvik Coromant A690-051C5-1060H CoroMill™ 690 long edge square shoulder milling cutter
R 32 160,90
inc. vat
In stock
SKU
5723632
CoroMill® 690 long edge square shoulder milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® 690 long edge square shoulder milling cutter
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DFC - Functional Diameter | 35mm |
| DCON - Connection Diameter | 50mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 100mm |
| TQ - Torque | 3Nm |
| RPMX - Rotational Speed Maximum | 50001/min |
| WT - Weight Of Item | 1.317kg |
| OAL - Overall Length | 130mm |
| OHX - Maximum Overhang | 100mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| RMPX - Maximum Ramping Angle | 0deg |
| GAMO - Orthogonal Rake Angle | 0deg |
| LAMS - Inclination Angle | 7deg |
| AN - Clearance Angle Major | 11deg |
| IC - Inscribed Circle Diameter | 10mm |
| Insert Thickness | 5.2mm |
| APMX - Depth Of Cut Maximum | 60mm |
| W1 - Insert Width | 10mm |
| DC - Cutting Diameter | 50.8mm |
| DCF - Cutting Diameter Face Contact | 49.2mm |
| GAMF - Radial Rake Angle | 0deg |
| GAMP - Axial Rake Angle | 6.99999995deg |
| AZ - Maximum Plunge Depth | 0mm |
| ORDCODE | A690-051C5-1060H |
| ADINTMS - Adaptive Interface Machine Direction | M_CCS01_C0500_1 |
| CNSC - Coolant Entry Style Code | 3 |
| CXSC - Coolant Exit Style Code | 8 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-08-18 15:04:00.000 |
| STDNO - Standard Number | ISO26623-1 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_MK1005P_1 |
| Hand | R |
| MIID - Master Insert Identification | 690-100508M-E-SL |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | S |
| SSC - Insert Seat Size Code | 10P |
| CICT - Cutting Item Count | 3 |
| ZEFP - Peripheral Effective Cutting Edge Count | 3 |
| DPC - Damping Property | False |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| CPDF - Cutting Pitch Differential | False |
