R 15 229,45
inc. vat
In stock
SKU
6702265
CoroMill® 745 face milling cutter
Reliable nationwide shipping
Delivery in 4 - 5 days

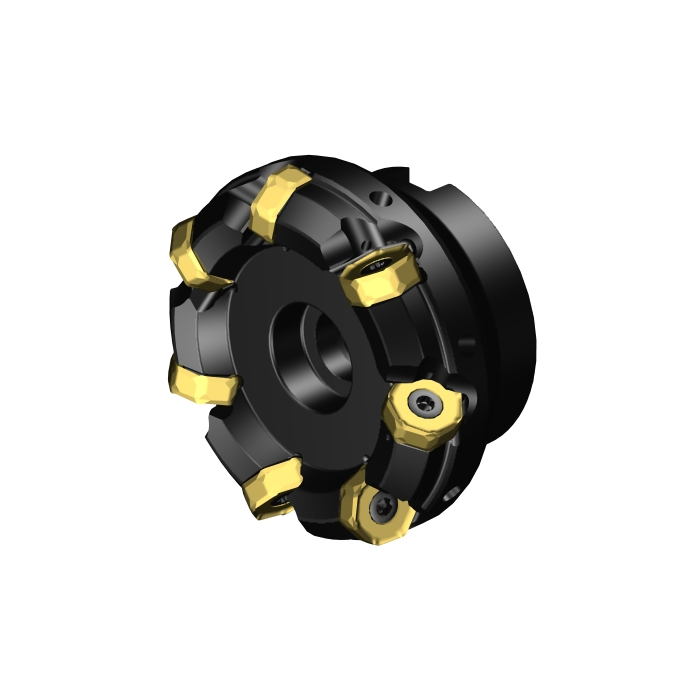

CoroMill® 745 face milling cutter
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 38.1mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 63mm |
TQ - Torque | 12Nm |
RPMX - Rotational Speed Maximum | 47251/min |
WT - Weight Of Item | 2.771kg |
OAL - Overall Length | 63mm |
OHX - Maximum Overhang | 63mm |
KAPR - Tool Cutting Edge Angle | 42deg |
RMPX - Maximum Ramping Angle | 0deg |
GAMO - Orthogonal Rake Angle | -10deg |
LAMS - Inclination Angle | 20deg |
AN - Clearance Angle Major | 13deg |
IC - Inscribed Circle Diameter | 21mm |
Insert Thickness | 9mm |
L - Cutting Edge Length | 10.113067mm |
APMX - Depth Of Cut Maximum | 5.2mm |
DC - Cutting Diameter | 101.6mm |
DCF - Cutting Diameter Face Contact | 101.6mm |
GAMF - Radial Rake Angle | -21.22957395deg |
GAMP - Axial Rake Angle | 6.41919062deg |
DCX - Maximum Cutting Diameter | 116.8mm |
AZ - Maximum Plunge Depth | 0mm |
ORDCODE | A745-102R38-21M |
ADINTMS - Adaptive Interface Machine Direction | M_FDA1A1_S1500_1 |
CNSC - Coolant Entry Style Code | 3 |
CXSC - Coolant Exit Style Code | 2 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-03-24 02:34:00.000 |
STDLET - Standard Letter | A |
STDNO - Standard Number | ISO6462 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NN2109_1 |
Hand | R |
MIID - Master Insert Identification | 745R-2109 |
IFS - Insert Mounting Style Code | 3 |
SSC - Insert Seat Size Code | 21 |
CICT - Cutting Item Count | 7 |
ZEFP - Peripheral Effective Cutting Edge Count | 7 |
DPC - Damping Property | False |
NROTF - Non Rotating Functionality | False |
RTOF - Rotating Functionality | True |
CPDF - Cutting Pitch Differential | False |
