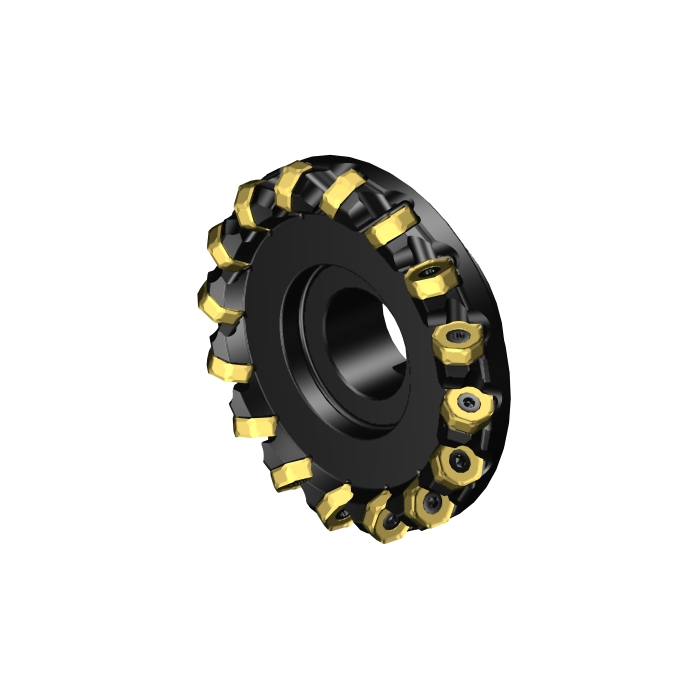

Sandvik Coromant A745-160J51-21H CoroMill™ 745 face milling cutter

Name: Sandvik Coromant A745-160J51-21H CoroMill™ 745 face milling cutter
SKU: 6702282
Price: 31982.65 ZAR
Availability: OutOfStock

R 31 982,65 inc. vat

Out of stock

SKU

6702282

CoroMill® 745 face milling cutter

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CoroMill® 745 face milling cutter

More Information
DCON - Connection Diameter	50.8mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	63mm
TQ - Torque	12Nm
RPMX - Rotational Speed Maximum	36751/min
WT - Weight Of Item	4.474kg
OAL - Overall Length	63mm
OHX - Maximum Overhang	63mm
KAPR - Tool Cutting Edge Angle	42deg
RMPX - Maximum Ramping Angle	0deg
GAMO - Orthogonal Rake Angle	-10deg
LAMS - Inclination Angle	20deg
AN - Clearance Angle Major	13deg
IC - Inscribed Circle Diameter	21mm
Insert Thickness	9mm
L - Cutting Edge Length	10.113067mm
APMX - Depth Of Cut Maximum	5.2mm
DC - Cutting Diameter	160mm
DCF - Cutting Diameter Face Contact	160mm
GAMF - Radial Rake Angle	-21.22957395deg
GAMP - Axial Rake Angle	6.41919062deg
DCX - Maximum Cutting Diameter	175.2mm
AZ - Maximum Plunge Depth	0mm
ORDCODE	A745-160J51-21H
ADINTMS - Adaptive Interface Machine Direction	M_FDACB1_S2000_1
CNSC - Coolant Entry Style Code	0
CXSC - Coolant Exit Style Code	0
BMC - Body Material Code	1
CHANGEDATE	2022-03-24 02:34:00.000
MTP - Clamping Type Code	S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers	WCOR_NN2109_1
Hand	R
MIID - Master Insert Identification	745R-2109
IFS - Insert Mounting Style Code	3
SSC - Insert Seat Size Code	21
CICT - Cutting Item Count	16
ZEFP - Peripheral Effective Cutting Edge Count	16
DPC - Damping Property	False
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
CPDF - Cutting Pitch Differential	False
