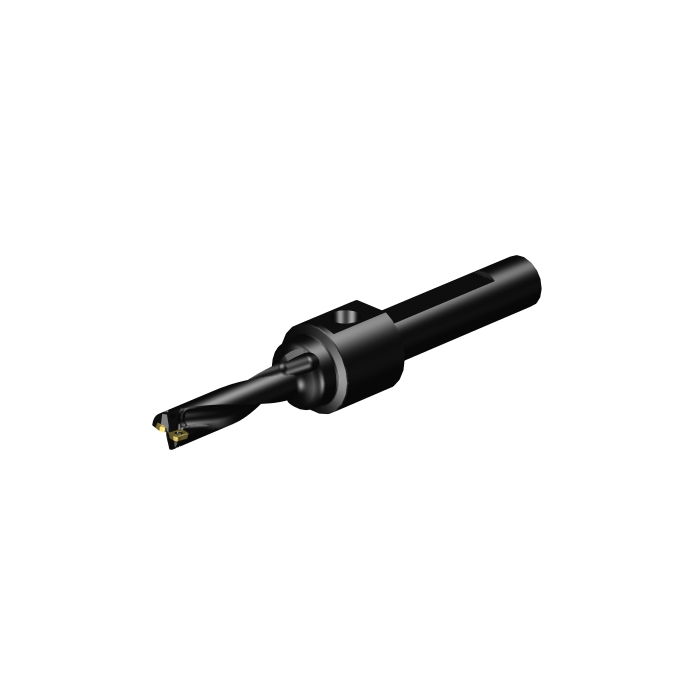

Sandvik Coromant A880-D0531P19-04 CoroDrill® 880 indexable insert drill
R 8 590,50
inc. vat
In stock
SKU
5723476
CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
| CP - Coolant Pressure | 1000000Pa |
|---|---|
| DCON - Connection Diameter | 19.05mm |
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 98.9546mm |
| BD - Body Diameter | 19.05mm |
| LB - Body Length | 56.642mm |
| BHTA - Body Half Taper Angle | 0deg |
| TQ - Torque | 0.6Nm |
| RPMX - Rotational Speed Maximum | 220001/min |
| WT - Weight Of Item | 0.36kg |
| OAL - Overall Length | 175.539mm |
| OHX - Maximum Overhang | 98.9546mm |
| LSC - Clamping Length | 75.7mm |
| KAPR - Tool Cutting Edge Angle | 79deg |
| GAMO - Orthogonal Rake Angle | 5deg |
| LAMS - Inclination Angle | 0deg |
| Insert Thickness | 2.2mm |
| LU - Usable Length | 54.3344mm |
| ADJLN - Minimum Adjustment Limit | 0mm |
| ADJLX - Maximum Adjustment Limit | 0.25mm |
| W1 - Insert Width | 4.8mm |
| DC - Cutting Diameter | 13.4874mm |
| FHA - Flute Helix Angle | 17.5deg |
| ULDR - Usable Length Diameter Ratio | 4.028530332014 |
| TCHAL - Achievable Hole Tolerance Lower | 0mm |
| TCHAU - Achievable Hole Tolerance Upper | 0.4mm |
| PL - Point Length | 0.3848mm |
| LCF - Chip Flute Length | 64.3344mm |
| SIG - Point Angle | 158deg |
| ORDCODE | A880-D0531P19-04 |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLUSP_R7500_1 |
| CNSC - Coolant Entry Style Code | 7 |
| CXSC - Coolant Exit Style Code | 3 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-02-10 15:13:00.000 |
| MTP - Clamping Type Code | S |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DE0102P_1 |
| Hand | R |
| MIID - Master Insert Identification | 880-010203H-C-GR |
| IFS - Insert Mounting Style Code | 3 |
| SSC - Insert Seat Size Code | 01C |
| CICT - Cutting Item Count | 1 |
| NOF - Flute Count | 2 |
| NROTF - Non Rotating Functionality | True |
| RTOF - Rotating Functionality | True |
