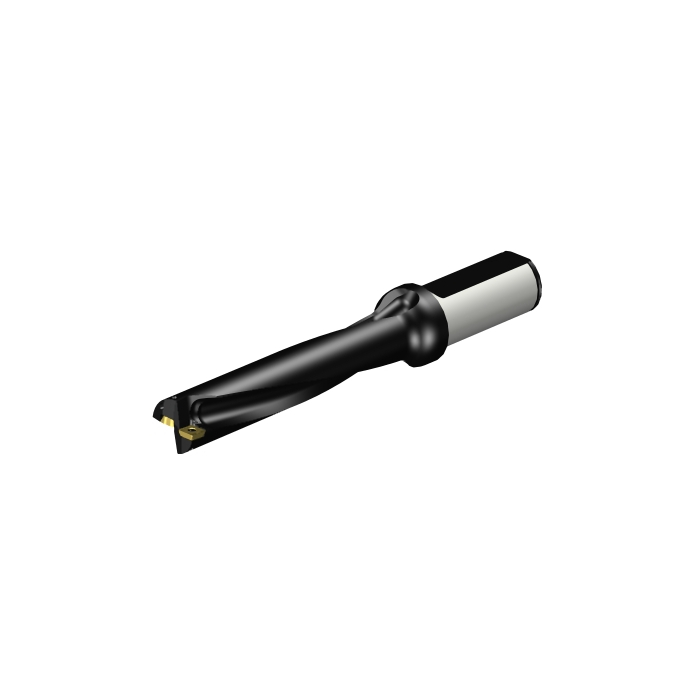

Sandvik Coromant A880-D0875LX25-05 CoroDrill® 880 indexable insert drill

R 10 375,30 inc. vat
In stock
SKU
5723665
CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 25.4mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 132.0265mm
BD - Body Diameter 25.4mm
LB - Body Length 114.4524mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 0.9Nm
RPMX - Rotational Speed Maximum 120001/min
WT - Weight Of Item 0.432kg
OAL - Overall Length 188.41mm
OHX - Maximum Overhang 132.0265mm
LSC - Clamping Length 56mm
KAPR - Tool Cutting Edge Angle 88deg
GAMO - Orthogonal Rake Angle 5deg
LAMS - Inclination Angle 0deg
IC - Inscribed Circle Diameter 7.4mm
Insert Thickness 2.8mm
H - Shank Height 23.4mm
LU - Usable Length 111.5087mm
ADJLN - Minimum Adjustment Limit 0mm
ADJLX - Maximum Adjustment Limit 0.58mm
DC - Cutting Diameter 22.225mm
FHA - Flute Helix Angle 13deg
ULDR - Usable Length Diameter Ratio 5.017264341957
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.4mm
PL - Point Length 0.3837mm
LCF - Chip Flute Length 127.3874mm
SIG - Point Angle 176deg
ORDCODE A880-D0875LX25-05
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_S1000_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-02-10 15:15:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DE0403P_1
Hand R
MIID - Master Insert Identification 880-040305H-C-GM
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 04P
TCDCON - Connection Diameter Tolerance h6
CICT - Cutting Item Count 1
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
