Sandvik Coromant A880-D0937LX25-05 CoroDrill® 880 indexable insert drill Previous Sandvik Coromant A880-D0937LX25-05 CoroDrill® 880 indexable insert drill

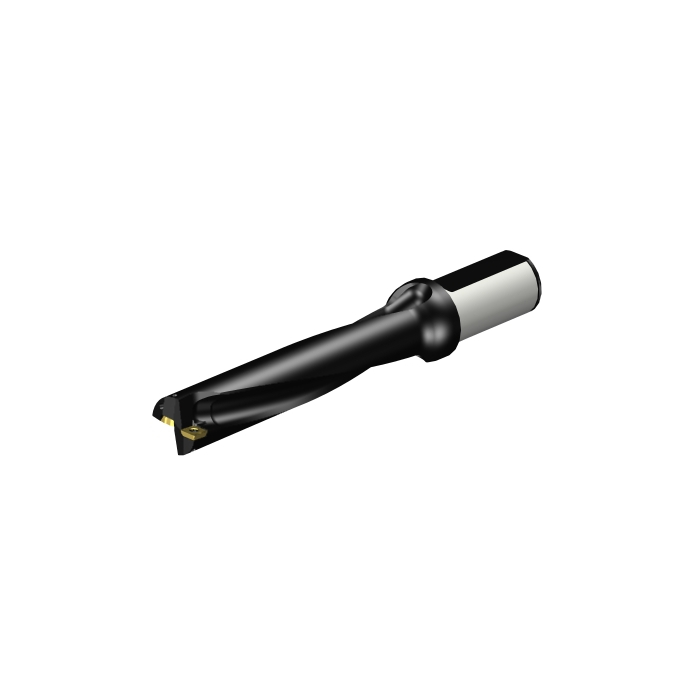

Sandvik Coromant A880-D1125LX31-05 CoroDrill® 880 indexable insert drill

R 11 931,25 inc. vat
In stock
SKU
5723806
CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 31.75mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 167.5976mm
BD - Body Diameter 31.75mm
LB - Body Length 146.304mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 1.4Nm
RPMX - Rotational Speed Maximum 105001/min
WT - Weight Of Item 0.86kg
OAL - Overall Length 228.072mm
OHX - Maximum Overhang 167.5976mm
LSC - Clamping Length 60mm
KAPR - Tool Cutting Edge Angle 88deg
GAMO - Orthogonal Rake Angle 5deg
LAMS - Inclination Angle 0deg
IC - Inscribed Circle Diameter 8.9mm
Insert Thickness 3mm
H - Shank Height 29.8mm
LU - Usable Length 143.3492mm
ADJLN - Minimum Adjustment Limit 0mm
ADJLX - Maximum Adjustment Limit 0.5mm
DC - Cutting Diameter 28.575mm
FHA - Flute Helix Angle 13deg
ULDR - Usable Length Diameter Ratio 5.016594925634
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.4mm
PL - Point Length 0.4742mm
LCF - Chip Flute Length 163.049mm
SIG - Point Angle 176deg
ORDCODE A880-D1125LX31-05
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_S1250_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-02-10 15:19:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DE0503P_1
Hand R
MIID - Master Insert Identification 880-0503W05H-P-GM
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 05P
TCDCON - Connection Diameter Tolerance h6
CICT - Cutting Item Count 1
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
