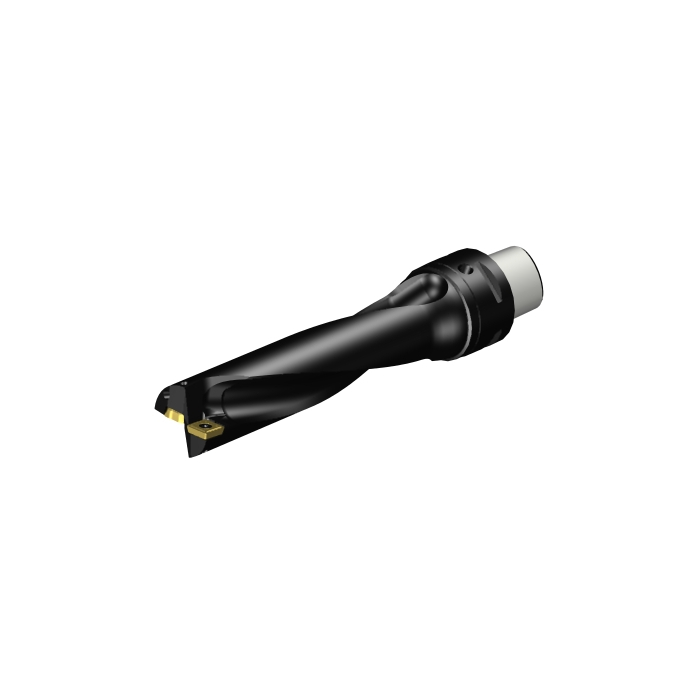

Sandvik Coromant A880-D1187C4-04 CoroDrill® 880 indexable insert drill

R 12 623,55 inc. vat
Out of stock
SKU
6328006
CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
More Information
CP - Coolant Pressure 1000000Pa
DFC - Functional Diameter 28mm
DCON - Connection Diameter 40mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 166.121mm
BD - Body Diameter 30.1498mm
LB - Body Length 123.9774mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 2Nm
RPMX - Rotational Speed Maximum 140001/min
WT - Weight Of Item 684g
OAL - Overall Length 190.675mm
OHX - Maximum Overhang 166.121mm
KAPR - Tool Cutting Edge Angle 88deg
GAMO - Orthogonal Rake Angle 5deg
LAMS - Inclination Angle 0deg
IC - Inscribed Circle Diameter 10.65mm
Insert Thickness 3.5mm
LU - Usable Length 121.153mm
ADJLN - Minimum Adjustment Limit 0mm
ADJLX - Maximum Adjustment Limit 1.1mm
DC - Cutting Diameter 30.1498mm
FHA - Flute Helix Angle 17.5deg
ULDR - Usable Length Diameter Ratio 4.01836828105
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.4mm
PL - Point Length 0.5538mm
LCF - Chip Flute Length 141.6558mm
SIG - Point Angle 176deg
ORDCODE A880-D1187C4-04
ADINTMS - Adaptive Interface Machine Direction M_CCS01_C0400_1
CNSC - Coolant Entry Style Code 3
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-03-01 01:16:00.000
STDNO - Standard Number ISO26623-1
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DE0604P_1
Hand R
MIID - Master Insert Identification 880-0604W06H-P-GM
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 06P
CICT - Cutting Item Count 1
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
