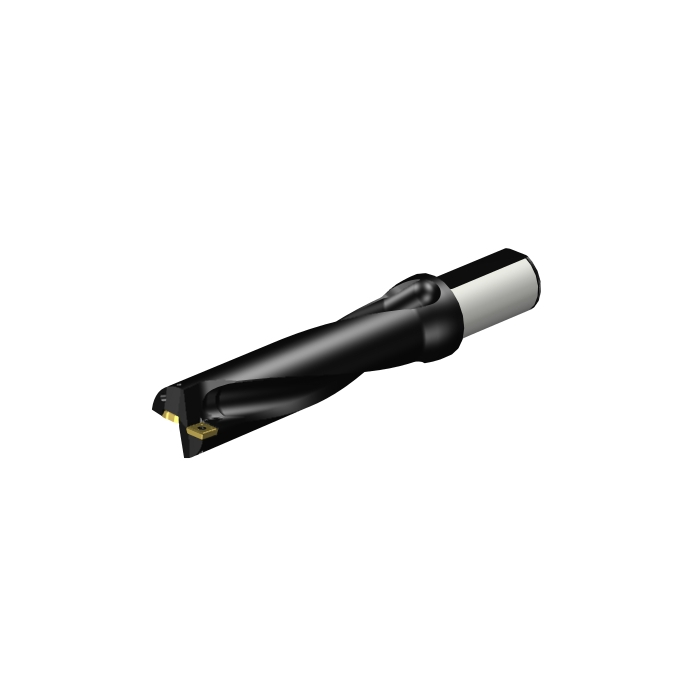

Sandvik Coromant A880-D1625LX38-04 CoroDrill® 880 indexable insert drill

R 12 408,50 inc. vat
In stock
SKU
5723313
CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
More Information
CP - Coolant Pressure 1000000Pa
DCON - Connection Diameter 38.1mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 197.9248mm
BD - Body Diameter 41.275mm
LB - Body Length 169.2148mm
BHTA - Body Half Taper Angle 0deg
TQ - Torque 2Nm
RPMX - Rotational Speed Maximum 110001/min
WT - Weight Of Item 1.846kg
OAL - Overall Length 268.603mm
OHX - Maximum Overhang 197.9248mm
LSC - Clamping Length 70mm
KAPR - Tool Cutting Edge Angle 88deg
GAMO - Orthogonal Rake Angle 5deg
LAMS - Inclination Angle 0deg
IC - Inscribed Circle Diameter 12.35mm
Insert Thickness 4mm
H - Shank Height 36.1mm
LU - Usable Length 165.7778mm
ADJLN - Minimum Adjustment Limit 0mm
ADJLX - Maximum Adjustment Limit 0.72mm
DC - Cutting Diameter 41.275mm
FHA - Flute Helix Angle 17.5deg
ULDR - Usable Length Diameter Ratio 4.016421562689
TCHAL - Achievable Hole Tolerance Lower 0mm
TCHAU - Achievable Hole Tolerance Upper 0.4mm
PL - Point Length 0.6778mm
LCF - Chip Flute Length 193.5798mm
SIG - Point Angle 176deg
ORDCODE A880-D1625LX38-04
ADINTMS - Adaptive Interface Machine Direction M_CYLISO_S1500_1
CNSC - Coolant Entry Style Code 1
CXSC - Coolant Exit Style Code 3
BMC - Body Material Code 1
CHANGEDATE 2022-02-10 15:08:00.000
MTP - Clamping Type Code S
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_DE0704P_1
Hand R
MIID - Master Insert Identification 880-0704W06H-P-GM
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code S
SSC - Insert Seat Size Code 07P
TCDCON - Connection Diameter Tolerance h6
CICT - Cutting Item Count 1
NOF - Flute Count 2
NROTF - Non Rotating Functionality True
RTOF - Rotating Functionality True
