R 11 620,75
inc. vat
In stock
SKU
5723277

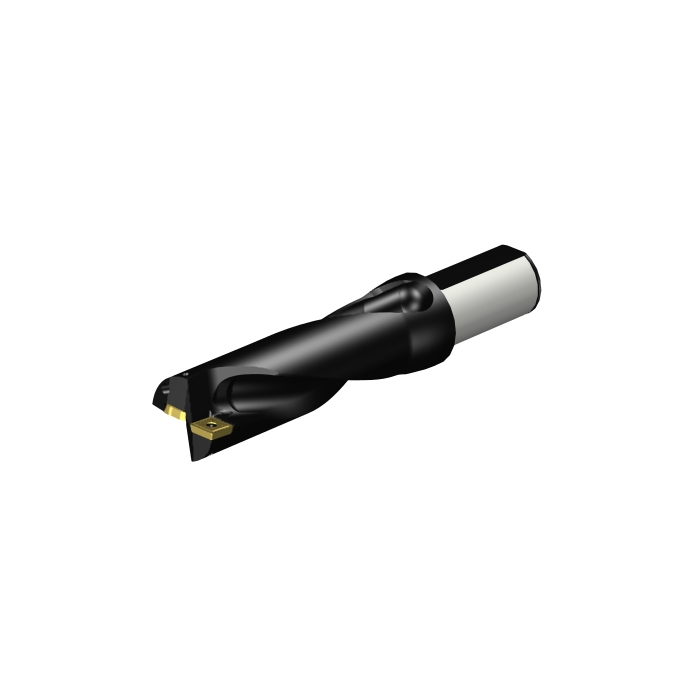

CoroDrill® 880 indexable insert drill
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroDrill® 880 indexable insert drill
CP - Coolant Pressure | 1000000Pa |
---|---|
DCON - Connection Diameter | 38.1mm |
KAP - Kappa (z-axis Rot) | 0deg |
LF - Functional Length | 168.3202mm |
BD - Body Diameter | 44.45mm |
LB - Body Length | 137.795mm |
BHTA - Body Half Taper Angle | 0deg |
TQ - Torque | 3Nm |
RPMX - Rotational Speed Maximum | 150001/min |
WT - Weight Of Item | 1.683kg |
OAL - Overall Length | 239.088mm |
OHX - Maximum Overhang | 168.3202mm |
LSC - Clamping Length | 70mm |
KAPR - Tool Cutting Edge Angle | 88deg |
GAMO - Orthogonal Rake Angle | 5deg |
LAMS - Inclination Angle | 0deg |
IC - Inscribed Circle Diameter | 14.85mm |
Insert Thickness | 4.5mm |
H - Shank Height | 36.1mm |
LU - Usable Length | 134.1176mm |
ADJLN - Minimum Adjustment Limit | 0mm |
ADJLX - Maximum Adjustment Limit | 1.444mm |
DC - Cutting Diameter | 44.45mm |
FHA - Flute Helix Angle | 22deg |
ULDR - Usable Length Diameter Ratio | 3.017268841395 |
TCHAL - Achievable Hole Tolerance Lower | 0mm |
TCHAU - Achievable Hole Tolerance Upper | 0.3mm |
PL - Point Length | 0.7676mm |
LCF - Chip Flute Length | 164.065mm |
SIG - Point Angle | 176deg |
ORDCODE | A880-D1750LX38-03 |
ADINTMS - Adaptive Interface Machine Direction | M_CYLISO_S1500_1 |
CNSC - Coolant Entry Style Code | 1 |
CXSC - Coolant Exit Style Code | 3 |
BMC - Body Material Code | 1 |
CHANGEDATE | 2022-02-10 15:06:00.000 |
MTP - Clamping Type Code | S |
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_DE0805P_1 |
Hand | R |
MIID - Master Insert Identification | 880-080508H-C-GM |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | S |
SSC - Insert Seat Size Code | 08C |
TCDCON - Connection Diameter Tolerance | h6 |
CICT - Cutting Item Count | 1 |
NOF - Flute Count | 2 |
NROTF - Non Rotating Functionality | True |
RTOF - Rotating Functionality | True |
