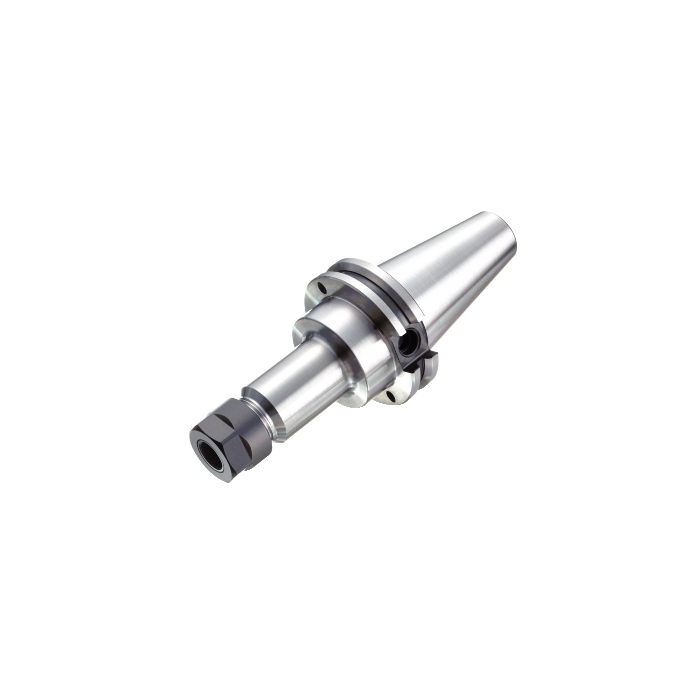

Sandvik Coromant AA3B14-40 16 152 CAT-V to ER collet chuck

Name: Sandvik Coromant AA3B14-40 16 152 CAT-V to ER collet chuck
SKU: 8297075
Price: 2312.65 ZAR
Availability: OutOfStock

R 2 312,65 inc. vat

Out of stock

SKU

8297075

CAT-V to ER collet chuck

Reliable nationwide shipping

Delivery in 4 - 5 days

Details

CAT-V to ER collet chuck

More Information
CP - Coolant Pressure	8000000Pa
DFC - Functional Diameter	16mm
DCON - Connection Diameter	17mm
KAP - Kappa (z-axis Rot)	0deg
LF - Functional Length	141.8mm
BD - Body Diameter	63.5mm
LB - Body Length	152.4mm
BHTA - Body Half Taper Angle	0deg
RPMX - Rotational Speed Maximum	160001/min
WT - Weight Of Item	1.404kg
OAL - Overall Length	220.65mm
OHX - Maximum Overhang	141.8mm
ORDCODE	AA3B14-40 16 152
ADINTMS - Adaptive Interface Machine Direction	M_SKG37_C0400_1
ADINTWS - Adaptive Interface Workpiece Direction	W_CLTERB_C0160_1
CNSC - Coolant Entry Style Code	7
CXSC - Coolant Exit Style Code	1
DCPS - Data Chip Provision Size	2
CRKS - Connection Retention Knob Thread Size	5/8"-11
BMC - Body Material Code	1
CHANGEDATE	2022-09-20 01:06:00.000
STDLET - Standard Letter	AD/B
STDNO - Standard Number	ASME B5.50
DPC - Damping Property	False
DCP - Data Chip Provision	True
BBD - Balanced By Design	True
NROTF - Non Rotating Functionality	False
RTOF - Rotating Functionality	True
