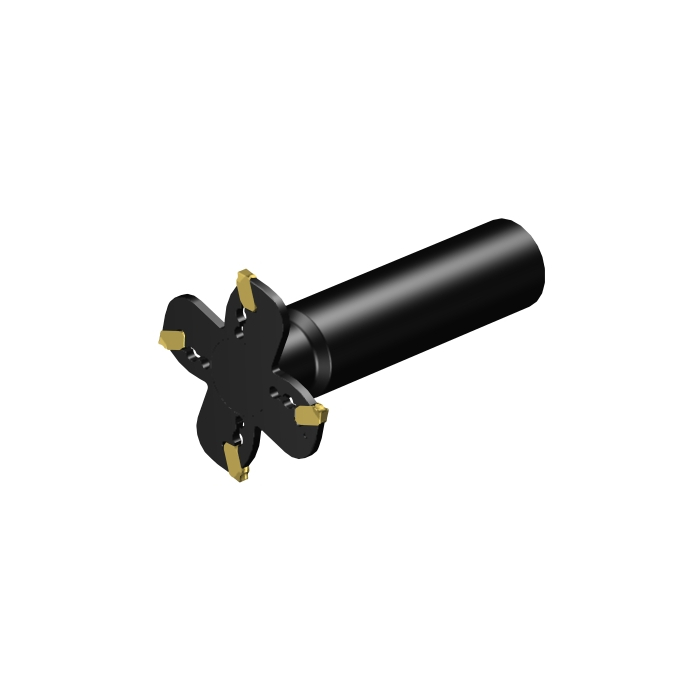

Sandvik Coromant AQD-H-076O31-M CoroMill™ QD indexable grooving & parting off cutter
R 10 489,15
inc. vat
Out of stock
SKU
6657485
CoroMill® QD indexable grooving and parting off cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® QD indexable grooving and parting off cutter
| DCON - Connection Diameter | 31.75mm |
|---|---|
| KAP - Kappa (z-axis Rot) | 0deg |
| LF - Functional Length | 130mm |
| BD - Body Diameter | 25mm |
| LB - Body Length | 23.7mm |
| BHTA - Body Half Taper Angle | 0deg |
| RPMX - Rotational Speed Maximum | 51001/min |
| WT - Weight Of Item | 0.796kg |
| OAL - Overall Length | 130mm |
| OHX - Maximum Overhang | 72.06mm |
| LSC - Clamping Length | 102.4mm |
| KAPR - Tool Cutting Edge Angle | 90deg |
| OHN - Minimum Overhang | 27.6mm |
| Insert Thickness | 4mm |
| LU - Usable Length | 25.7mm |
| CW - Cutting Width | 4mm |
| CDX - Cutting Depth Maximum | 24.5mm |
| DC - Cutting Diameter | 76mm |
| DN - Neck Diameter | 25mm |
| ORDCODE | AQD-H-076O31-M |
| ADINTMS - Adaptive Interface Machine Direction | M_CYLR_S1250_1 |
| CNSC - Coolant Entry Style Code | 0 |
| CXSC - Coolant Exit Style Code | 0 |
| BMC - Body Material Code | 1 |
| CHANGEDATE | 2022-01-17 12:03:00.000 |
| MTP - Clamping Type Code | C |
| CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers | WCOR_NOH_1 |
| Hand | R |
| MIID - Master Insert Identification | QD-NH-0400-025E-PM |
| SSC - Insert Seat Size Code | H |
| CICT - Cutting Item Count | 4 |
| ZEFP - Peripheral Effective Cutting Edge Count | 4 |
| NROTF - Non Rotating Functionality | False |
| RTOF - Rotating Functionality | True |
| LOCAP - Location Aid Property | False |
| CPDF - Cutting Pitch Differential | False |
