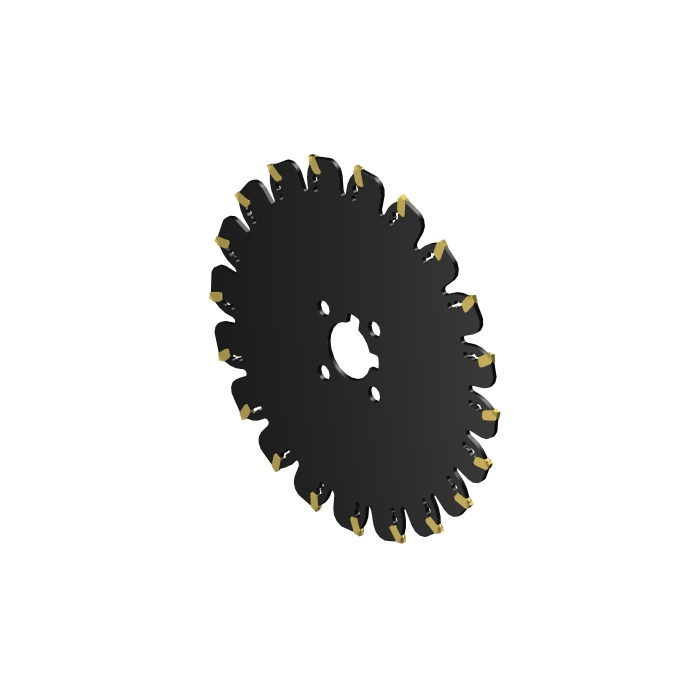

Sandvik Coromant AQD-H-254Y38-M CoroMill™ QD indexable grooving & parting off cutter

R 27 772,50 inc. vat
In stock
SKU
6657490
CoroMill® QD indexable grooving and parting off cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® QD indexable grooving and parting off cutter
More Information
DCON - Connection Diameter 38.1mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 3.65mm
RPMX - Rotational Speed Maximum 28001/min
WT - Weight Of Item 1.076kg
OAL - Overall Length 4mm
OHX - Maximum Overhang 3.65mm
DBC - Diameter Bolt Circle 63mm
KAPR - Tool Cutting Edge Angle 90deg
Insert Thickness 4mm
CW - Cutting Width 4mm
CDX - Cutting Depth Maximum 87mm
DC - Cutting Diameter 254mm
ORDCODE AQD-H-254Y38-M
ADINTMS - Adaptive Interface Machine Direction M_FDAC24_C0Y38_1
CNSC - Coolant Entry Style Code 0
CXSC - Coolant Exit Style Code 0
BMC - Body Material Code 1
CHANGEDATE 2022-01-17 12:18:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_NOH_1
Hand R
MIID - Master Insert Identification QD-NH-0400-025E-PM
SSC - Insert Seat Size Code H
CICT - Cutting Item Count 20
ZEFP - Peripheral Effective Cutting Edge Count 20
DRVCT - Drive Count 2
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
CPDF - Cutting Pitch Differential True
