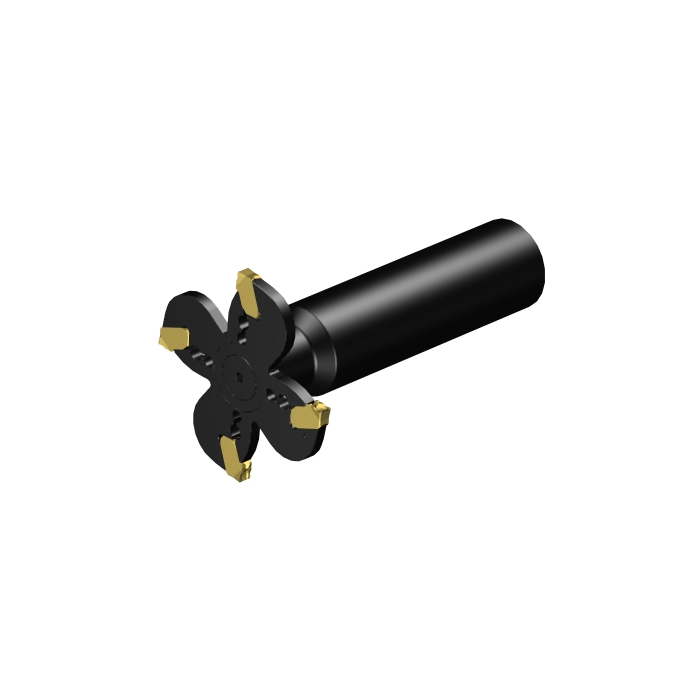

Sandvik Coromant AQD-JC076O31-M CoroMill™ QD indexable grooving & parting off cutter

R 12 062,35 inc. vat
In stock
SKU
6657503
CoroMill® QD indexable grooving and parting off cutter
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroMill® QD indexable grooving and parting off cutter
More Information
CP - Coolant Pressure 7000000Pa
DCON - Connection Diameter 31.75mm
KAP - Kappa (z-axis Rot) 0deg
LF - Functional Length 130mm
BD - Body Diameter 22mm
LB - Body Length 24.7mm
BHTA - Body Half Taper Angle 0deg
RPMX - Rotational Speed Maximum 43001/min
WT - Weight Of Item 0.767kg
OAL - Overall Length 130mm
OHX - Maximum Overhang 72.06mm
LSC - Clamping Length 101.4mm
KAPR - Tool Cutting Edge Angle 90deg
OHN - Minimum Overhang 28.6mm
Insert Thickness 5mm
LU - Usable Length 26.7mm
CW - Cutting Width 4.76mm
CDX - Cutting Depth Maximum 26mm
DC - Cutting Diameter 76mm
DN - Neck Diameter 22mm
ORDCODE AQD-JC076O31-M
ADINTMS - Adaptive Interface Machine Direction M_CYLR_S1250_1
CNSC - Coolant Entry Style Code 4
CXSC - Coolant Exit Style Code 2
BMC - Body Material Code 1
CHANGEDATE 2022-01-17 12:03:00.000
MTP - Clamping Type Code C
CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers WCOR_NOJ_1
Hand R
MIID - Master Insert Identification QD-NJ-0476-030E-PM
SSC - Insert Seat Size Code J
CICT - Cutting Item Count 4
ZEFP - Peripheral Effective Cutting Edge Count 4
NROTF - Non Rotating Functionality False
RTOF - Rotating Functionality True
LOCAP - Location Aid Property False
CPDF - Cutting Pitch Differential False
