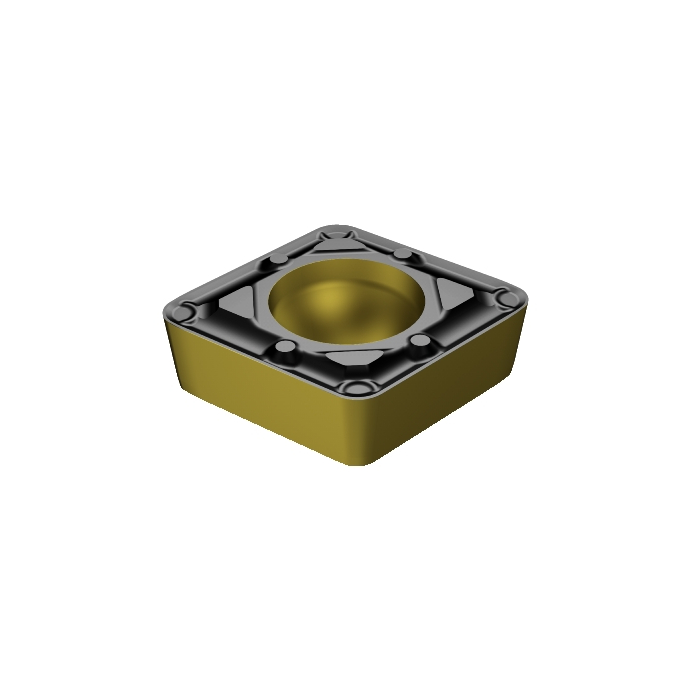

Sandvik Coromant CCMT 06 02 04-WF 4415 CoroTurn™ 107 insert for turning
R 200,10
inc. vat
In stock
SKU
7859079
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
| KAP - Kappa (z-axis Rot) | 0deg |
|---|---|
| WT - Weight Of Item | 1.7g |
| AN - Clearance Angle Major | 7deg |
| IC - Inscribed Circle Diameter | 6.35mm |
| RE - Corner Radius | 0.3969mm |
| Insert Thickness | 2.38125mm |
| D1 - Fixing Hole Diameter | 2.8mm |
| LE - Cutting Edge Effective Length | 6.048mm |
| L - Cutting Edge Length | 6.448mm |
| KRINS - Major Cutting Edge Angle | 95deg |
| BS - Wiper Edge Length | 0.55mm |
| ORDCODE | CCMT 06 02 04-WF 4415 |
| CHANGEDATE | 2022-09-23 21:23:00.000 |
| Hand | N |
| IFS - Insert Mounting Style Code | 3 |
| SC - Insert Shape Code | C |
| SSC - Insert Seat Size Code | 06 |
| CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CC0602_1 |
| Grade | 4415 |
| COATING | CVD TiCN+Al2O3+TiN |
| SUBSTRATE | HC |
| CBMD - Chip Breaker Manufacturer's Designation | WF |
| CEDC - Cutting Edge Count | 2 |
| WEP - Wiper Edge Property | True |
