Sandvik Coromant CCMT 09 T3 04-UF 4425 CoroTurn™ 107 insert for turning
Next
Sandvik Coromant CCMT 06 02 04-WF 4425 CoroTurn™ 107 insert for turning
Previous
![Sandvik Coromant CCMT 09 T3 04-UF 4425 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/7093862f2/sandvik-coromant-ccmt-09-t3-04-uf-4425-coroturntm-107-insert-for-turning.jpg)
![Sandvik Coromant CCMT 06 02 04-WF 4425 CoroTurn™ 107 insert for turning](https://toolcentre.co.za/media/catalog/product/cache/3d45c7c636ad12c00ca7e41150c17b7b/image/70936118b/sandvik-coromant-ccmt-06-02-04-wf-4425-coroturntm-107-insert-for-turning.jpg)
R 200,10
inc. vat
In stock
SKU
7860902

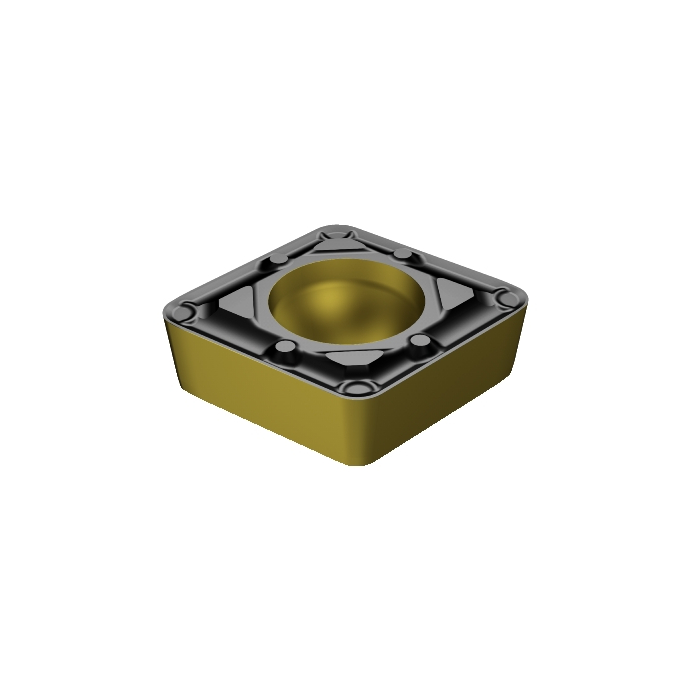

CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
KAP - Kappa (z-axis Rot) | 0deg |
---|---|
WT - Weight Of Item | 1g |
AN - Clearance Angle Major | 7deg |
IC - Inscribed Circle Diameter | 6.35mm |
RE - Corner Radius | 0.7938mm |
Insert Thickness | 2.38125mm |
D1 - Fixing Hole Diameter | 2.8mm |
LE - Cutting Edge Effective Length | 5.648mm |
L - Cutting Edge Length | 6.448mm |
KRINS - Major Cutting Edge Angle | 95deg |
BS - Wiper Edge Length | 0.7mm |
ORDCODE | CCMT 06 02 08-WF 4425 |
CHANGEDATE | 2022-09-23 22:05:00.000 |
Hand | N |
IFS - Insert Mounting Style Code | 3 |
SC - Insert Shape Code | C |
SSC - Insert Seat Size Code | 06 |
CUTINT_SIZESHAPE - Insert Size And Shape | MISO_CC0602_1 |
Grade | 4425 |
COATING | CVD TiCN+Al2O3+TiN |
SUBSTRATE | HC |
CBMD - Chip Breaker Manufacturer's Designation | WF |
CEDC - Cutting Edge Count | 2 |
WEP - Wiper Edge Property | True |
