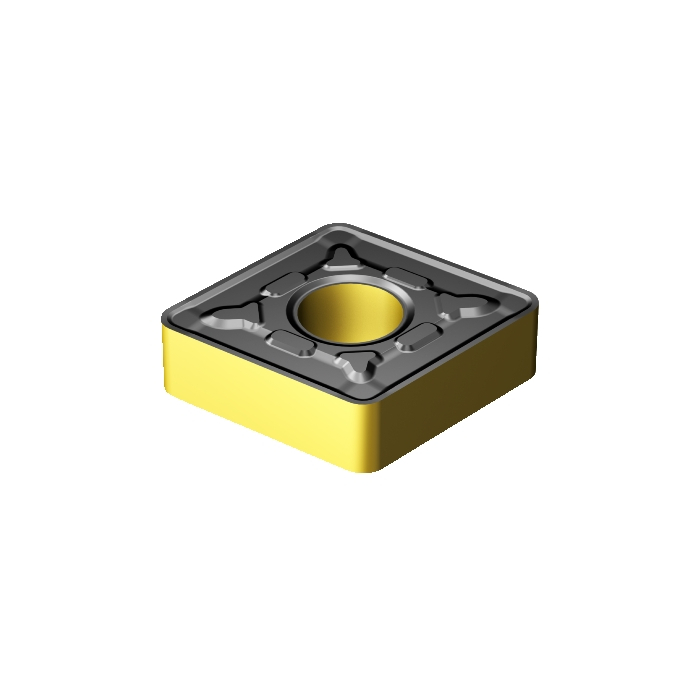

Sandvik Coromant CNMG 12 04 16-PR 4425 T-Max™ P insert for turning

R 250,70 inc. vat
In stock
SKU
7860724
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 9.1g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 12.7mm
RE - Corner Radius 1.5875mm
Insert Thickness 4.7625mm
D1 - Fixing Hole Diameter 5.156mm
LE - Cutting Edge Effective Length 11.2959mm
L - Cutting Edge Length 12.8959mm
ORDCODE CNMG 12 04 16-PR 4425
CHANGEDATE 2022-09-23 21:28:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code C
SSC - Insert Seat Size Code 12
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CN1204_1
Grade 4425
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation PR
CEDC - Cutting Edge Count 4
WEP - Wiper Edge Property False
