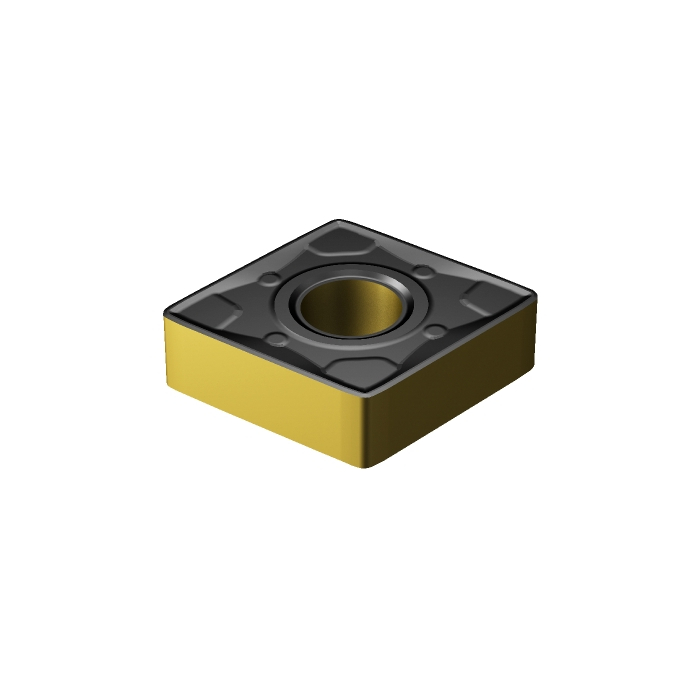

Sandvik Coromant CNMM 19 06 16-WR 4415 T-Max™ P insert for turning

R 634,80 inc. vat
In stock
SKU
8021302
T-Max® P insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
T-Max® P insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 27g
AN - Clearance Angle Major 0deg
IC - Inscribed Circle Diameter 19.05mm
RE - Corner Radius 1.5875mm
Insert Thickness 6.35mm
D1 - Fixing Hole Diameter 7.925mm
LE - Cutting Edge Effective Length 17.7439mm
L - Cutting Edge Length 19.3439mm
KRINS - Major Cutting Edge Angle 95deg
BS - Wiper Edge Length 1.5mm
ORDCODE CNMM 19 06 16-WR 4415
CHANGEDATE 2022-09-22 11:53:00.000
Hand N
IFS - Insert Mounting Style Code 2
SC - Insert Shape Code C
SSC - Insert Seat Size Code 19
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CN1906_1
Grade 4415
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation WR
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property True
