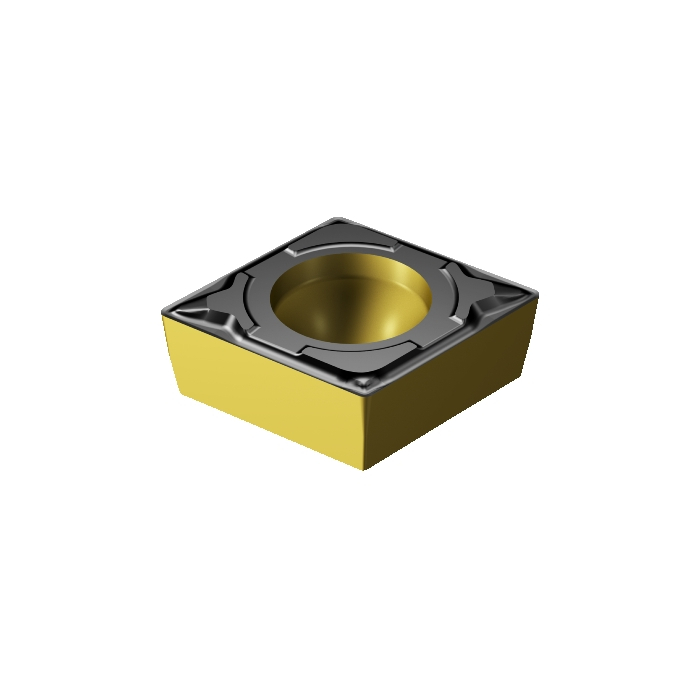

Sandvik Coromant CPMT 09 T3 04-PF 4425 CoroTurn™ 111 insert for turning

R 210,45 inc. vat
In stock
SKU
8019490
CoroTurn® 111 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 111 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 3g
AN - Clearance Angle Major 11deg
IC - Inscribed Circle Diameter 9.525mm
RE - Corner Radius 0.3969mm
Insert Thickness 3.96875mm
D1 - Fixing Hole Diameter 4.4mm
LE - Cutting Edge Effective Length 9.2719mm
L - Cutting Edge Length 9.6719mm
ORDCODE CPMT 09 T3 04-PF 4425
CHANGEDATE 2022-09-23 22:10:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code C
SSC - Insert Seat Size Code 09
CUTINT_SIZESHAPE - Insert Size And Shape MISO_CP09T3_1
Grade 4425
COATING CVD TiCN+Al2O3+TiN
SUBSTRATE HC
CBMD - Chip Breaker Manufacturer's Designation PF
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property False
