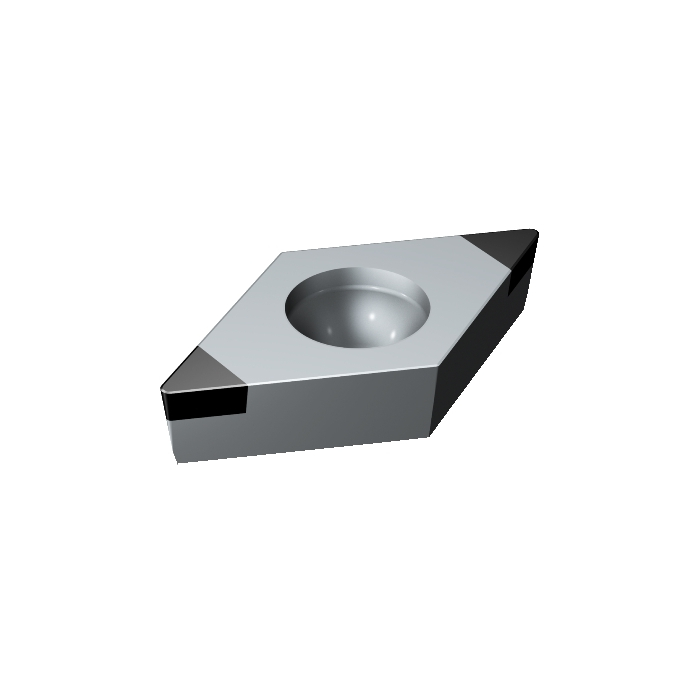

Sandvik Coromant DCGW070202T01020F 7125 CoroTurn™ 107 insert for turning

R 979,80 inc. vat
In stock
SKU
7586844
CoroTurn® 107 insert for turning
Reliable nationwide shipping
Delivery in 4 - 5 days
CoroTurn® 107 insert for turning
More Information
KAP - Kappa (z-axis Rot) 0deg
WT - Weight Of Item 1.2g
AN - Clearance Angle Major 7deg
IC - Inscribed Circle Diameter 6.35mm
RE - Corner Radius 0.2mm
Insert Thickness 2.38125mm
D1 - Fixing Hole Diameter 2.8mm
LE - Cutting Edge Effective Length 2.5mm
L - Cutting Edge Length 7.7519mm
BN - Face Land Width 0.1mm
GB - Face Land Angle 20deg
GAN - Insert Rake Angle 0deg
ORDCODE DCGW070202T01020F 7125
CHANGEDATE 2022-09-23 21:22:00.000
Hand N
IFS - Insert Mounting Style Code 3
SC - Insert Shape Code D
SSC - Insert Seat Size Code 07
CUTINT_SIZESHAPE - Insert Size And Shape MISO_DC0702_1
Grade 7125
COATING PVD AlTiCrN
SUBSTRATE BC
CEDC - Cutting Edge Count 2
WEP - Wiper Edge Property False
